DAYTON電機6XH63BA產品參數
Product Details | |
Motor Application | General Application |
Phase | Single |
Motor Design | Split-Phase |
HP | 1/4 |
Nameplate RPM | 1450 |
No. of Speeds | 1 |
Voltage | 110/220V AC |
Full Load Amps | 5.2/2.6 |
Frame | 48 |
Usable @ 208V | No |
Usable @ 200V | No |
Hz | 50 |
Motor Service Factor | 1 |
Max. Ambient Temp. | 40 °C |
Motor Thermal Protection | None |
Ins. Class | B |
Motor Enclosure Design | Open Dripproof |
Motor Shaft Rotation | CW/CCW |
Motor Mounting Type | Cradle Base |
Motor Mounting Position | All Angle |
Motor Shaft Design | Flat |
Shaft Dia. | 1/2 in |
Shaft Length | 1-1/2 in |
Motor Bearings | Sleeve |
Length Less Shaft | 7-15/16 in |
Weight | 16.1 lb |
Full Load Amps @ 50Hz | 5.2/2.6 |
HP @ 50Hz | 1/4 |
DAYTON電機6XH63BA產品介紹

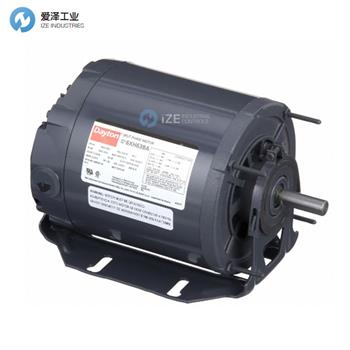

DAYTON 50 Hz Motor: Open Dripproof, 1/4 HP, 1,450 Nameplate RPM, 110/220V AC, 48 Frame
DAYTON電機其他常見型號：
DAYTON 6XH63BA
DAYTON 6XH56BA
DAYTON 6XH81BA
DAYTON 6XH83BA
DAYTON DC Permanent Magnet Motor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DAYTON電機6XH63BA的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DAYTON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
