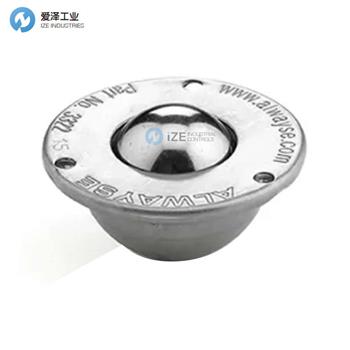

ALWAYSE萬向滾珠3322-15HD技術參數
SPECIFICATION | 332215HD | |
Load Ball Diameter (mm) | 22.2 | |
Fixing Method | Flange | |
Max Load (Ball Up) (kg) | 80 | |
Max Load (Ball Down) (kg) | 40 | |
Load Ball Material | Stainless Steel | |
Support Ball Material | Stainless Steel | |
Unit Housing Finish | Stainless Steel | |
Product Weight (kg) | 0.1 | |

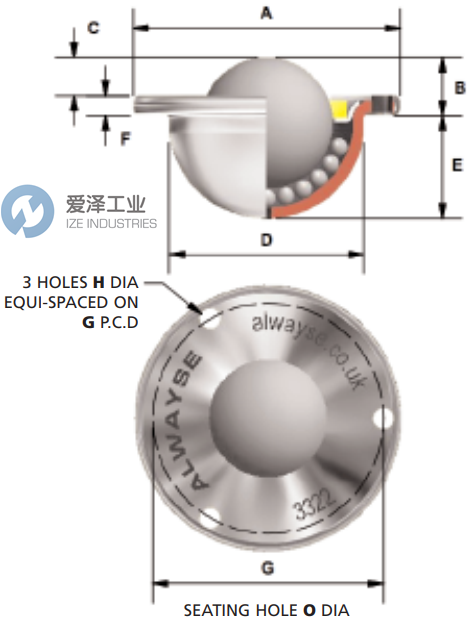

Dim. A - Max Diameter (mm) | 45 | |
Dim. B - Working ht. of Ball (mm) | 9.8+/- 0.3 | |
Dim. D - Body Diameter (mm) | 33 | |
Dim. E - Under Flange to Base (mm) | 17.9 | |
Dim. F - Flange Thickness (mm) | 3.6 | |
Dim. G - Fixing Holes PCD (mm) | 39 | |
Dim. H - Fixing Hole Size (mm) | 3.5 | |
Dim. O - Seating Hole (mm) | 34 |
ALWAYSE萬向滾珠3322HD系列介紹
非常低調的壓制鋼單元,具有大負載球暴露和高額定負載。
有羊毛氈密封和污物出口孔。
負載球直徑 - 22.2
Very low profile pressed steel unit with large load ball exposure and high load rating.
Has woollen felt seal and dirt exit hole.
Load Ball Diameter - 22.2
ALWAYSE萬向滾珠3322HD系列其他常用型號:
ALWAYSE 332213HD
ALWAYSE 332214HD
ALWAYSE 332215HD
ALWAYSE 332216HD
ALWAYSE BALL TRANSFER UNIT NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ALWAYSE萬向滾珠3322-15HD的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for ALWAYSE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
ALWAYSE萬向滾珠3322-15HD技術參數及介紹
