MOOG泵HPR18A7RKP140TM28R1Z00技術參數
MODEL CODE | HPR18A7RKP140TM28R1Z00 |
Code | Hydraulic Pump |
Rotations | Clockwise, looking at drive shaft |
Speed | Maximum speed for low noise operation or rated speed for power controlled pumps, e. g. 18 => n = 1,800 min-1 |
Drive flange | Straight key according to DIN 6885, 4 holes ISO flange according to ISO 3019-2 (metric) |
Pump type | Radial piston pump, variable displacement |
Displacement RKP | 140 cm3/rev |
Pump ports | Medium pressure series (to 280 bar (4,000 psi)) sizes 100 cm3/rev and 140 cm3/rev |
Operating fluid | Mineral Oil |
Operating pressure | Maximum operating pressure e.g., 28 => 280 bar (4,000 psi) |
Control/Compensators | Combined pressure and flow compensator with P-T control notch |
Additional equipment | No Accessories |
Additional information | CAN bus, actual value output 4 to 20 mA |

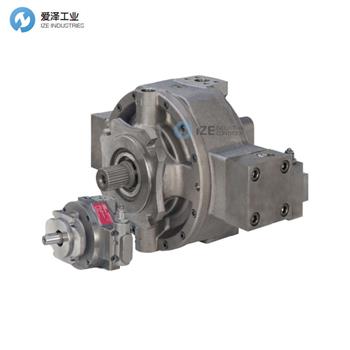

MOOG泵RKP系列介紹
RKP 泵受益于低噪音水平。 尺寸 32 至 250 配有滑動沖程環。 大吸入口支持使用寬吸入管路。
穆格徑向柱塞泵 RKP 的其他優勢包括：
? 反應快
? 緊湊的模塊化設計使泵的選擇能夠與應用相匹配
? 良好的吸力特性
? 低壓紋波
The RKP pumps benefit from low noise levels. Sizes 32 to 250 are fitted with a sliding stroke ring. The big suction port supports the use of wide suction lines.
Further Advantages of the Moog Radial Piston Pump RKP are:
? Fast response
? Compact modular design enabling the pump selection to match the application
? Good suction characteristics
? Low pressure ripple

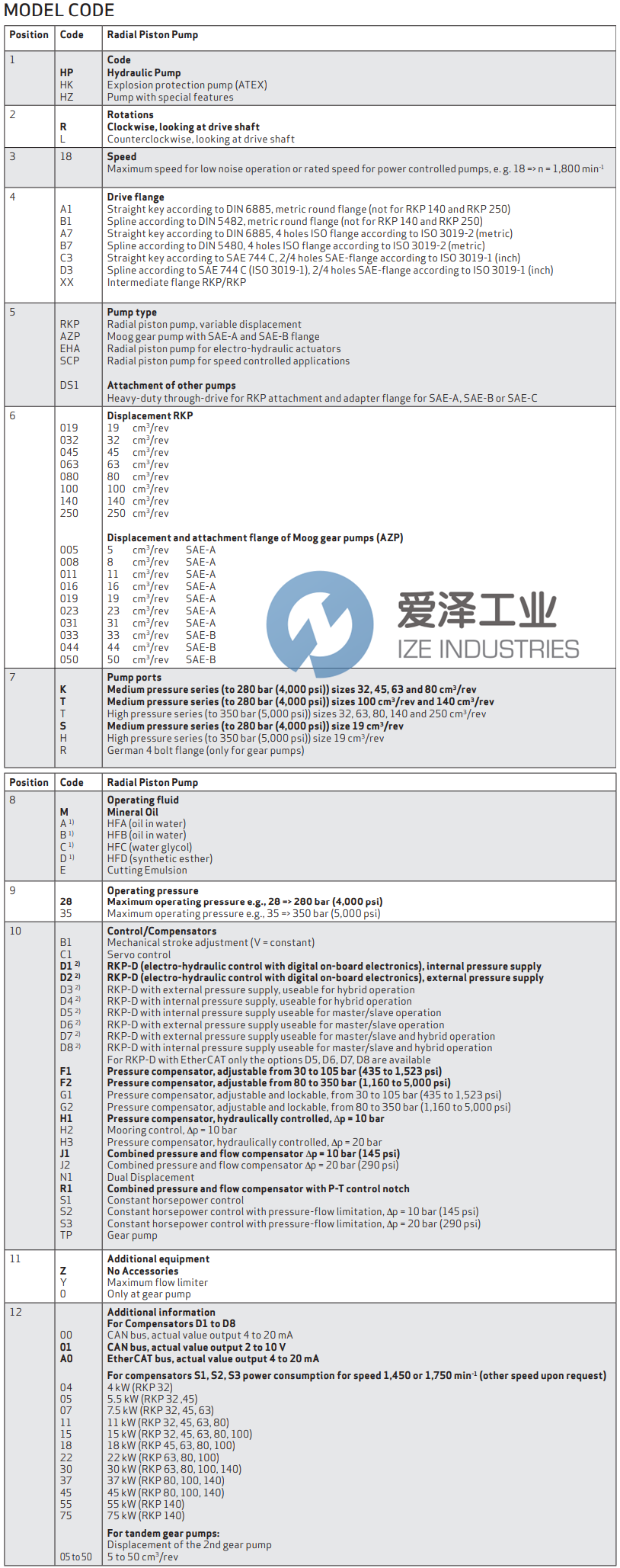

MOOG泵RKP系列選型
MOOG泵RKP系列其他常用型號：
MOOG HPR18A1 RKP019SM28F2Z00
MOOG HPR18A1 RKP032KM28F2Z00
MOOG HPR18A1 RKP045KM28F2Z00
MOOG HPR18A1 RKP063KM28F2Z00
MOOG HPR18A1 RKP080KM28F2Z00
MOOG HPR18A1 RKP100TM28F2Z00
MOOG HPR18A7 RKP140TM28F2Z00
MOOG HPR18A7 RKP250TM35F2Z00
MOOG HPR18A1 RKP01 9SM28H1Z00
MOOG HPR18A1 RKP032KM28H1 Z00
MOOG HPR18A1 RKP045KM28H1Z00
MOOG HPR18A1 RKP063KM28H1Z00
MOOG HPR18A1 RKP080KM28H1Z00
MOOG HPR18A1 RKP1 00TM28H1Z00
MOOG HPR18A7RKP140TM28R1Z00
MOOG Pumps NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MOOG泵HPR18A7RKP140TM28R1Z00的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MOOG products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
MOOG泵RKP系列HPR18A7RKP140TM28R1Z00技術參數及選型
