APTECH調壓閥AK1015S 4PL 44 CC描述
AK 1050= 10-500 psig (.7 to 35 bar) |
S = Stainless steel (SS) |
4PL = 4 Ports |
4 = 1/4 inch NPT |
4 = 1/4 inch NPT |
C |
C |

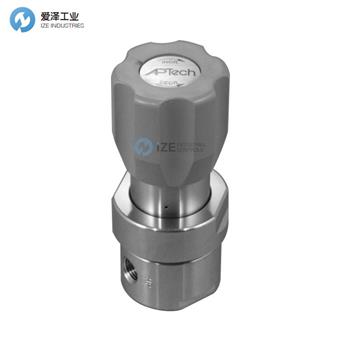

APTECH調壓閥AK1000系列產品介紹
Vacuum to 3,500 psig (241 bar) inlet,500 psig (35 bar) outlet
Flow capacity* 0 to 100 slpm (0 to 3.5 scfm) HF Option
Stainless Steel or Brass construction
Ni-Cr-Mo alloy internals, ‘SH’ option, for added corrosion resistance
High leak integrity
Machined from bar stock
Optional accessories
Fine adjustment control (six turns of the knob from off to wide open)
Cleaned for O2 service
Field repairable
Diffusion resistant Stainless Steel diaphragm
真空至 3,500 psig (241 bar) 入口,500 psig (35 bar) 出口
流量* 0到100 slpm (0到3.5 scfm) HF 選項
不銹鋼或黃銅結構
Ni-Cr-Mo 合金內件,“SH”選項,用于增加耐腐蝕性
防泄漏性
可選配件
微調控制(旋鈕從關到開共旋轉六圈)
為O2服務清潔
現場修復
防擴散不銹鋼膜片
APTECH調壓閥AK1000系列其他型號列舉:
APTECH AK1015S 4PL 44 CC
APTECH AK1050B5PC4404010
APTECH AK1015S4PL4400HF
APTECH AK1015S4PL44CCHF
APTECH AK1015S4PL4400
APTECH AK1010S4PL44002MPATF
APTECH AK1010TS4PL4T4T00
APTECH AK1015S2P44MK
APTECH Pressure regulating valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于APTECH調壓閥AK1015S 4PL 44 CC的疑問,請隨時與我們電聯,(021-3100 6702),我們將盡全力解決您的問題。
If you have any question for APTECH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
APTECH調壓閥AK1000系列AK1015S 4PL 44 CC介紹
