MSE過濾板技術參數
Technical Data of the filter plates | ||
Chamber filter plate | Membrane filter plate | |
Format | Standard sizes; 400, 470, 500, 630, 800, 915, 1000, 1067. 1200, 1300, 1450, 1470, 1500, 1500 x 2000 and 2000 x 2000 mm. These formats are available in open and closed versions. Larger and differently sized formats on request. | Standard sizes: 400, 470, 500, 630, 800, 915, 1000, 1067. 1200, 1300, 1450, 1470, 1500, 1500 x 2000 and 2000 x 2000 mm. These formats are available in open and closed versions. Larger and differently sized formats on request. |
Sludge inlet | Standard inlets: central inlet, decentralized inlet, corner inlet | Standard inlets: central inlet, decentralized inlet, corner inlet |
Pressure | Depending on the version, standard products are suitable for a maximum filtration pressure of 8 bar or 16 bar. | Depending on the version, standard products are suitable for a maximum filtration pressure of 7 bar and a maximum squeezing pressure of 16 bar. |
Temperature | The maximum permissible filtration temperature depends, among other things, on the filtration pressure, the chemical composition of the slurry to be filtered, the cycle time and the choice of material. | The maximum permissible filtration temperature depends, among other things, on the filtration pressure, the squeezing pressure, the chemical composition of the sludge to be filtered and the choice of material. In addition, the membrane can be cooled or heated during the filtration cycle. |
Materials | Chamber filter plates can be made of the following materials for specific applications: | Membrane filter plates can be made of the following materials for specific applications: |
Features | + lowest price | + shortest filtration, washing and dewatering time |
MSE過濾板介紹
壓濾機濾板
箱式壓濾機和隔膜壓濾機的濾板主要是由PP制成的耐化學腐蝕和耐壓的塑料板。它們與懸垂的濾布一起構成了壓濾機中濾餅過濾的處理區域，主要負責固液分離。還提供用于高達 +130°C 的高溫和低至 -10°C 的低溫的特殊材料，以實現連續運行。集成在過濾板中的排水表面設計有旋鈕或凹槽。結果，濾布一方面得到支撐，另一方面濾液的限定流出是可能的。為您的個別應用選擇過濾板的工藝工程參數是過濾表面、腔室深度或 濾餅強度和脫水程度。這導致腔室或濾餅體積和濾板類型。施工的基本方面取決于可選的工藝步驟，例如濾餅洗滌、濾餅干燥和吹芯等。
根據應用和領域，有不同滲透率、結構、設計（懸垂濾布、推入式濾布、CGR）和材料的濾布。
FILTER PLATES FOR FILTER PRESSES
Filter press plates for chamber filter presses and membrane filter presses are primarily chemically resistant and pressure-resistant plastic plates made of PP. Together with the overhanging filter cloth, these form the process space for cake filtration in the filter press and are mainly responsible for solid/liquid separation. Special materials for higher temperatures up to +130°C and for lower temperatures down to -10°C are also available for continuous operation. The drainage surface integrated in the filter press plates is designed with nubs or grooves. This supports the filter cloth on the one hand and allows the filtrate to flow off in a defined manner on the other. Process-technical parameters for the selection of a filter plate for your individual application are the filter area, the chamber depth or the filter cake thickness and the degree of dewatering. This results in the chamber or cake volume as well as the filter plate type.
Essential aspects of the design depend on the optional process steps such as filter cake washing, filter cake drying as well as core blowing and much more.
MSE過濾板其他常用型號：
MSE 800-KD25/TD/GK 33233673
MSE 800-KD25/TD/GK 33234673
MSE 800-GA4/KD25/TD/GK 33246027
MSE 33216135 Plate 800 KD25/TD/SWG
MSE 33216138 800KD25/TD/SG
MSE FILTERTUCH NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MSE過濾板33216138 800KD25/TD/SG的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MSE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.

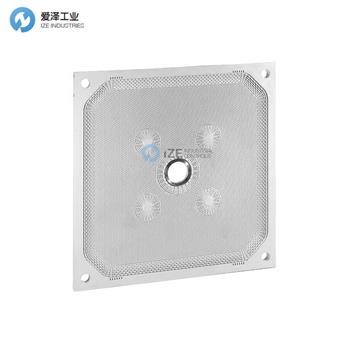

MSE過濾板33216138 800KD25/TD/SG介紹
