AVENTICS換向閥CD04系列技術參數
Version | Spool valve, positive overlapping |
Activation | Electrically |
Sealing principle | Soft sealing |
Working pressure min./max. | See table below |
Control pressure min./max. | 2..10bar |
Ambient temperature min./max. | -15...50 °C |
Medium temperature min./max. | -15... 50。C |
Medium | Compressed air |
Max. particle size | 50 um |
Oil content of compressed air | 0... 1 mg/m3 |
Nominal flow Qn | 900 /min |
Nominal flow 1上2 | 900 /min |
Nominal flow2 53 | 900 /min |
Compressed air connection | according to ISO 228-1 |
Pilot control exhaust | with directional pilot air exhaust |
Connector standard | EN 175301-803:2006 |
Protection class with connection | IP65 |
Compatibility index | 14 |
Duty cycle | 100% |
Mounting on manifold strip | P-strip |
Weight | See table below |
AVENTICS換向閥CD04系列介紹

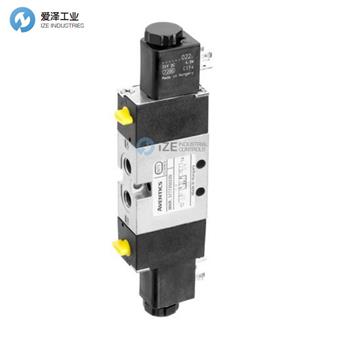

5/2-directional valve, Series CD04
- 5/2
- Qn = 900 l/min
- Pilot valve width : 26 mm
- Pipe connection
- Compressed air connection output : G 1/8
- Electrical connection : Plug, EN 175301-803, form B, 3-pin
- Manual override : with detent
- double solenoid
- Pilot : Internal External
5/2 換向閥，CD04 系列
- 5/2
- Qn = 900 升/分鐘
- 先導閥寬度：26 mm
- 管道連接
- 壓縮空氣連接輸出：G 1/8
- 電氣連接：插頭，EN 175301-803，B 型，3 針
- 手動操作：帶制動器
- 雙電控
- 試點：內部外部
AVENTICS換向閥其他常用型號：
AVENTICS 5777250220
AVENTICS 5777255280
AVENTICS 5777255302
AVENTICS 5777260220
AVENTICS 5777265280
AVENTICS 5777265302
