MSE過濾布技術參數
Technical data of the filter cloths | |
Format | Standard sizes: 400, 470, 500, 630, 800, 915, 1000, 1067. 1200, 1300, 1450, 1470, 1500, 1500 x 2000 and 2000 x 2000 mm. |
Sludge inlet | Standard inlets: central inlet, decentralized inlet. corner inlet |
Pressure | Depending on the version, standard products are suitable for a maximum fltration pressure of 8 bar or 16 bar. |
Temperatures | The maximum permissible fltration temperature depends, |
Materials | Filter cloths can be made of the following materials for specific applications: |
Weaves | ? Monofilament yarn (filament) |
Versions | ? Filter cloths can be made for Non-Gasketed (NG) or Caulked, Gasketed Recessed (CGR) chamber plates. |
MSE過濾布800GA4/KD25/TD/GK產品介紹

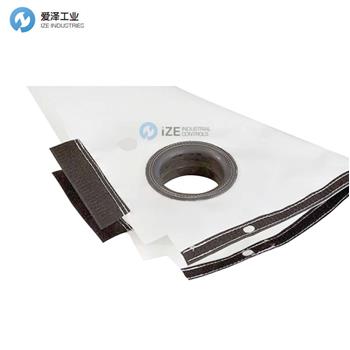

直通式濾布 800 GA4/KD25/TD/GK
Durchsteckfiltertuch 800 GA4/KD25/TD/GK
MSE過濾布介紹
壓濾機用濾布
濾布是紡織織物，在濾餅過濾中，其任務是將固體從（化學侵蝕性和回火的）懸浮液中分離出來，而不含固體的濾液可以通過織物流出。 考慮到工藝特性，濾布在吞吐量期間將固體分層保留。 隨著時間的推移，一層待分離的固體會積累起來，從而形成濾餅。 孔徑或網孔寬度是過濾效率的參數之一。 濾布的強度必須將過濾壓力產生的力傳遞給過濾器支架。 然而，這些布使用的時間越長，也有越多的固體沉積在織物結構中并堵塞該結構。 結果，液體的滲透性降低。 嚴重污染的濾布需要清洗，因?yàn)檫^(guò)濾時間會延長，濾布的使用壽命會縮短，濾餅釋放性能也會下降。 對于自動濾布清洗，MSE 提供濾布清洗系統作為自動擴展模塊。
根據應用和應用領域，有不同滲透率、結構、設計（懸垂濾布、推入式濾布、CGR）和材料的濾布。
FILTER CLOTHS FOR FILTER PRESSES
Filter cloths are textile fabrics, and in cake-forming filtration, have the task of separating the solids from a (chemically aggressive and tempered) suspension, while the solids-free filtrate can flow off through the fabric. The filter cloths retain the solids in layers during the throughput while taking into account the process characteristics. A layer of the solids to be separated accumulates over time and thus builds up the filter cake. The pore size or mesh width is one of the parameters for the degree of filter efficiency. The strength of the filter fabric must transfer the force resulting from the filtration pressure to the filter support. However, the longer these cloths are used, the more solids are also deposited in the fabric structure and clog this structure. As a result, the permeability for liquids is reduced. Heavily soiled filter cloths require cleaning because the filtration time is extended, the service life of the filter cloth is shortened and the cake release behaviour deteriorates. For automatic filter cloth cleaning, MSE offers a filter cloth washing system as an automated extension module.
Depending on the application and field of application, there are filter cloths with different permeabilities, structures, designs (overhang filter cloth, push-through filter cloth, CGR) and materials.
MSE過濾布其他常用型號：
MSE 800GA4/KD25/TD/GK
MSE FILTERTUCH NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MSE過濾布800GA4/KD25/TD/GK的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MSE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
