BELLOFRAM穩壓器3512/3522系列技術參數
Model | Type 3512/3522 |
Performance | Full-Scale Accuracy 0.5% |
Electrical Inputs | |
Supply Voltage | 24VDC (optional 15VDC) |
Stand by Supply Current | 80 mA |
Maximum Supply Current | 325 mA |
Supply Pressure | Max. Output PSIG (BAR) Max. Supply PSIG (BAR) |
Outputs | |
Atmospheric Pressure Ranges | 30, 100, 150 PSIG |
Forward Flow Capacity | 60 SCFM (1700 LPM) |
Exhaust Flow Capacity | 15 SCFM (425 LPM) |
Analog Setpoint Control | 0-5V, 0-10V, 4-20mA |
Digital Setpoint Control | 0-100% full scale (installed sensor=100%) |
Digital Communications | Serial RS-485 interface |
Serial Address | Addresses a-z available (except p and q reserved). 'r' default selectable and configurable via Serial or Keypad Display Interface |
Loop Options | Regulate first loop (onboard sensor) or 2nd loop (remote sensor) |
Remote Sensor Feedback | 0-10V, 0-5V, 4-20 mA, (Forward and Reverse Acting) |
Analog Output Source | Follow Setpoint, Output Pressure, or Remote Sensor |
Analog Output Range | 0-10V, 0-5V |
Environmental | |
Operating Temperature | 32-141?F (0-60?C) |
Media-Wetted Materials | Aluminum, copper alloys, nickel, buna-n, silicon, 316SS |
BELLOFRAM穩壓器3512/3522系列介紹
3512 型單回路和 3522 雙回路是單一單元 - 集成控制器和增壓器。 3512/3522 提供電磁閥技術，正向流量超過大多數標準工業電子調節器或 I/P 傳感器。 提供本地鍵盤編程選項或用于 PLC 或 PC 控制的 RS-485 數字通信。 許多輸出壓力范圍可達到 150 psi。 憑借可靠的雙電磁閥系統和集成壓力傳感器，可獲得 ± 0.5% 的精度。
應用包括； 夾持器控制、焊接操作、執行器控制、機械自動化、精密機器人、卷筒紙張力、半導體設備、模塑和成形操作以及輪胎制造和測試。
特征
? 串行接口
? 數字或模擬輸入
? 模擬監視器輸出
? 單回路和雙回路控制
? 前向流量高達 60 SCFM
? 數字顯示

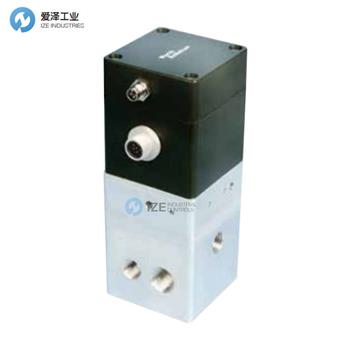

The Type 3512 single loop and 3522 double loop are single units - integrated controller and booster. The 3512/3522 offers solenoid valve technology with forward flow exceeding those of most standard industrial electronic regulators or I/P transducers. Available with a local keypad programming option or RS-485 digital communications for PLC or PC control. Many output pressure ranges are available up to 150 psi. With a reliable twin solenoid valve system, and an integral pressure sensor, an accuracy of ± 0.5% is obtainable.
Applications include; Gripper Control, Welding Operations, Actuator Control, Machinery Automation, Precision Robotics, Web Tension, Semiconductor Equipment, Molding and Forming Operations and Tire Manufacturing and Testing.
Features
? Serial Interface
? Digital or Analog Inputs
? Analog Monitor Output
? Single Loop and Dual Loop Control
? Forward Flow up to 60 SCFM
? Digital Display

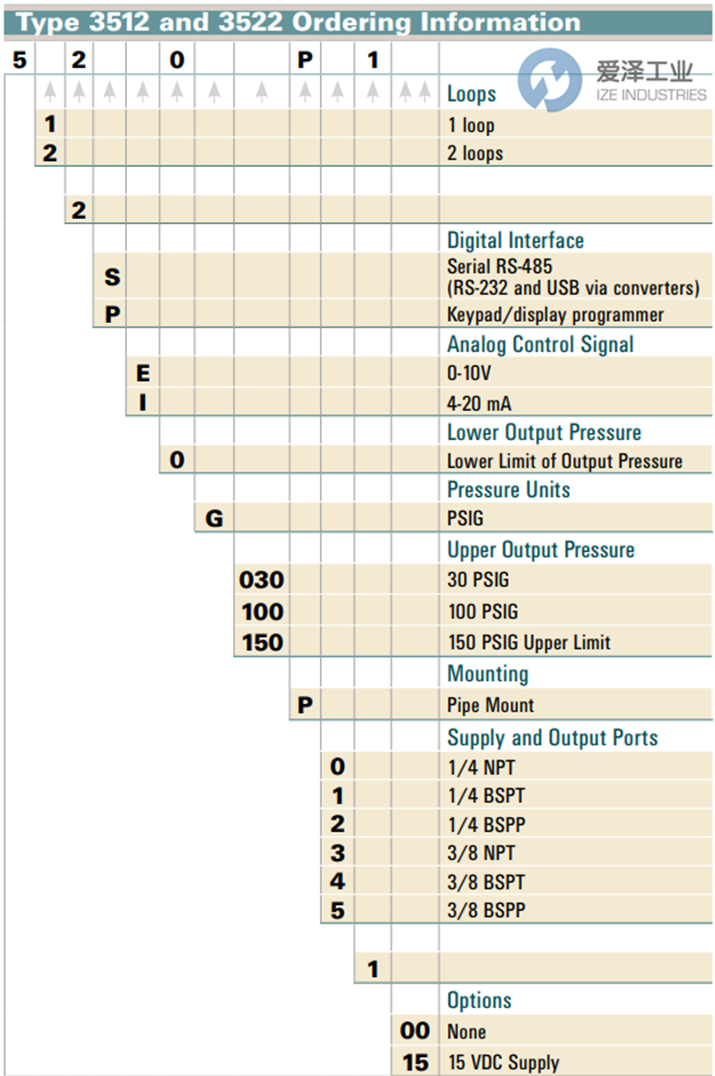

BELLOFRAM穩壓器3512/3522系列選型
BELLOFRAM穩壓器3512/3522系列其他常用型號：
BELLOFRAM 522PE0G100P0100
