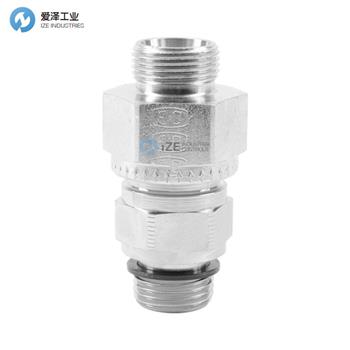

PARKER閥RHV25SREDCF技術規格
Technical Specifications | |
Connection 3 Size: | n/a |
Connection 2 Type: | Male metric thread - ED-seal (ISO 9974) |
Connection 1 Type: | EO 24° cone end |
Maximum Operating Temperature: | +120 °C |
Maximum Flow Rate: | n/a |
Configuration: | n/a |
Minimum Operating Temperature: | -40 °C |
Mounting Type: | Screw |
Actuation Type: | Mechanical |
Maximum Operating Pressure: | 420 bar |
Connection 2 Size: | G 1 A inch |
Connection 1 Size: | 25 mm |
Cracking Pressure: | 1 bar |
Body Material: | Steel |
Flow Direction: | Port to Tube |
Seal Material: | NBR |
Connection 3 Type: | n/a |
Product Type: | Non return valve for 1 tube |
Product Series: | Heavy |
Nominal Inside Diameter: | 19 mm |
Connection 1 Type: | 24° Cone end |
Connection 1 Size: | G 1 A |
Connection 1 Tube Outside Diameter: | 25 mm |
Connection 2 Type: | Male BSPP thread - ED-seal (ISO 1179) |
Connection 2 Size: | n/a |
Connection 2 Tube Outside Diameter: | n/a |
Flow Direction: | Port to Tube |
Seal Material: | NBR |
Materials of Construction: | Steel |
Optional Accessories: | Pre-assembled with nut and EO-PSR cutting ring |
PARKER閥RHV系列介紹
Parker止回閥的額定壓力高達 PN 420 bar，提供多種類型，具有很高的靈活性。
類型種類從 RHD（兩端管連接）、RHV/RHZ（管連接到公螺柱）、RHDI（兩端內螺紋）、RVP（閥芯）直到 I-TL（閥內部件）不等。
止回閥可根據需求提供鋼、不銹鋼和黃銅材質。密封件可選用 NBR 或 FKM，根據要求提供。
帕克止回閥均經過防污染包裝。
帕克止回閥可用于液壓油、低易燃液壓流體（對 HFC 類型除外：HFD 類型需使用 FKM 密封件）。已進行氣壓測試。不適用于蒸汽、可燃/爆炸性氣體或氧氣。
Parker non-return valves with nominal pressure ratings up to PN 420 bar offer a wide range of types, making them very flexible.
The variety of types starts with the item RHD with tube connection both ends, the RHV/RHZ with tube connection to male stud, RHDI with female thread both ends, RVP with valve cartridges up to the I-TL with valve internal parts.
The non return valves are available in steel, stainless steel and brass. Seals in NBR or FKM are available on request.
Parker non-return valves are all packed again contamination.
Parker non-return valves can be used for hydraulic oil, low flammability hydraulic fluids (excent for types HFC: for HFD types; FKM seals are necessary). Air pressure tested. Not suitable for steam, combustible/explosive gases, or oxygen.
PARKER閥RHV系列其他常用型號：
PARKER RHV25SREDCF
PARKER RHVO6ZLREDCF
PARKER RHV06ZSREDCF
PARKER RHV08ZLREDCF
PARKER RHV08ZSREDCF
PARKER RHV10ZLMEDCF
PARKER RHV10ZLREDCF
PARKER RHV10ZSMED71
PARKER RHV12ZLREDCF
PARKER RHV12ZSREDCF
PARKER RHV15ZLMEDCF
PARKER RHV15ZLREDCF
PARKER RHV16ZSREDCF
PARKER RHV18ZLREDCF
PARKER RHV20ZSMEDCF
PARKER RHV20ZSRED71
PARKER RHV20ZSREDCF
PARKER RHV22ZLREDCF
PARKER RHV25ZSREDCF
PARKER valve NEW + ORIGINAL+ ONE YEAR WARRANTY
