DIOTTALEVI氣缸300系列技術參數
FUNCTIONING CHARACTERISTICS | |
fluid | filtered and lubricated air |
max. pressure | 12 bar |
temperature | 0°C ÷ 80°C (-20°C with dry air) |
MANUFACTURING CHARACTERISTICS | |
end covers | aluminium alloy |
tube | hard oxidised aluminium |
piston rod | chromed C45 steel |
piston rod guide bush | self-lubricating in sintered bronze |
piston | aluminium alloy |
seals | NBR (on request VITON for high temperatures) |
piston guide ring | high flowability acetalic resin |
DIOTTALEVI氣缸300系列介紹
300 系列氣缸沒有減速器，結構簡單且成本低。
端蓋通過固定系統擰緊到管子上，將整體尺寸保持在最低限度。
Pneumatic cylinders series 300 do not have decelerators and are made of simple and cheaper construction.
End covers screwed to the tube completed by fixing system, they keep overall dimensions to a minimum.

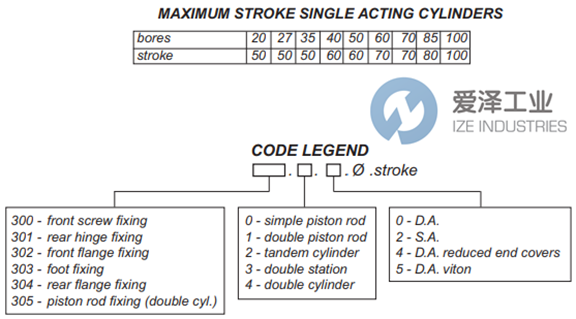

DIOTTALEVI氣缸300系列選型
DIOTTALEVI氣缸300系列其他常用型號：
DIOTTALEVI 301.00.020.050
DIOTTALEVI 301.00.027.050
DIOTTALEVI 301.00.035.050
DIOTTALEVI 301.00.040.060
DIOTTALEVI 301.00.050.060
DIOTTALEVI 301.00.060.070
DIOTTALEVI 301.00.070.060
DIOTTALEVI 301.00.070.070
DIOTTALEVI 301.00.085.080
DIOTTALEVI 301.00.100.100
DIOTTALEVI Pneumatic cylinders NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DIOTTALEVI氣缸301.00.070.060的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DIOTTALEVI products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
DIOTTALEVI氣缸300系列301.00.070.060技術參數及選型
