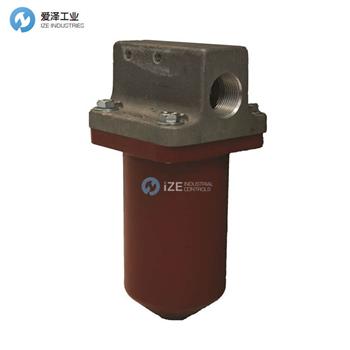

SCHROEDER過濾器TF1系列技術參數
Filter Housing Specifications | |
Flow Rating: | Up to 30 gpm (120 L/min) for 150 SUS (32 cSt) fluids |
Max. Operating Pressure: | 300 psi (20 bar) |
Min. Yield Pressure: | 1200 psi (80 bar), per NFPA T2.6.1 |
Rated Fatigue Pressure: | 270 psi (19 bar), per NFPA T2.6.1-2005 |
Temp. Range: | -20°F to 225°F (-29°C to 107°C) |
Bypass Setting: | Cracking: 30 psi (2 bar) |
Porting Head: | Cast Aluminum |
Element Case: | Steel (TF1) or Stainless Steel (WTF1) |
Weight of TF1-1A: | 5.1 lbs. (2.3 kg) |
Weight of TF1-2A: | 6.3 lbs. (2.9 kg) |
Element Change Clearance: | 3.50" (90 mm) |
Fluid Compatibility | |
Type Fluid | Appropriate Schroeder Media |
Petroleum Based Fluids | All E media (cellulose) and Z-Media? (synthetic) |
High Water Content | All Z-Media? (synthetic) |
Invert Emulsions | 10 and 25 μ Z-Media? (synthetic) |
Water Glycols | 3, 5, 10 and 25 μ Z-Media? (synthetic) |
Phosphate Esters | All Z-Media? (synthetic) with H (EPR) seal designation |
Skydrol? | 3, 5, 10 and 25 μ Z-Media? (synthetic) with H.5 seal designation |
SCHROEDER過濾器TF1系列介紹
? 提供管道、SAE 直螺紋、法蘭和 ISO 228 端口
? 各種 Dirt Alarm? 選項
? 提供無濾芯指示器
? 提供 NPTF 入口和出口母測試端口
? 提供磁鐵插件
? 可提供外殼排油塞
? Offered in pipe, SAE straight thread, flange and ISO 228 porting
? Various Dirt Alarm? options
? Available with No-Element indicator
? Available with NPTF inlet and outlet female test ports
? Available with magnet inserts
? Available with housing drain plug
SCHROEDER過濾器TF1系列選型
SCHROEDER過濾器TF1系列其他常用型號：
SCHROEDER TF11A10PX
SCHROEDER TF11A10PXMS5
SCHROEDER TF11A10SD
SCHROEDER TF11A10SD5
SCHROEDER TF 11A10SMS
SCHROEDER TF11A10SMS10
SCHROEDER TF11A10SMS12LC
SCHROEDER TF11A10SMS14AC
SCHROEDER TF11A10SX
SCHROEDER TF11AM150HSD5
SCHROEDER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SCHROEDER過濾器TF11AM150HSD5的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SCHROEDER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
