DUPLOMATIC電磁換向閥DS5系列參數特性
Maximum operating pressure |
|
Maximum flow rate | 150 l/min |
Pressure drops △p-Q | see paragraph 4 |
Operating limits | see paragraph 6 |
Electrical features | see paragraph 7 |
Electrical connections | see paragraph 11 |
Ambient temperature range | -20 / +50℃ |
Fluid temperature range | -20 / +80℃ |
Fluid viscosity range | 10 ÷ 400cSt |
Fluid contamination degree | according to ISO 4406:1999 class 20/18/15 |
Recommended viscosity | 25 cSt |
Mass: |
|
DUPLOMATIC電磁換向閥DS5系列介紹
DESCRIPTION

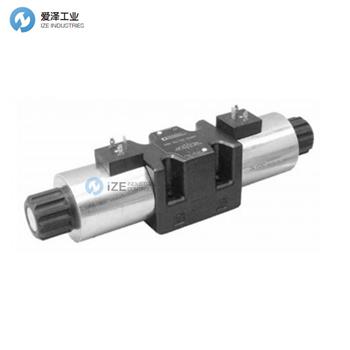

DS5 are spools directional valves that control passage and direction of a flow, for subplate mounting. They are available with 3-ports and 4-ports design, with spring return or mechanical detent. The valve body is made with high strength iron castings provided with wide internal passages in order to minimize the flow pressure drops. Wet armature solenoids with interchangeable coils are used. The valve is available with DC or AC solenoids. DC solenoids can also be fed with AC power supply, by using connectors with a built-in rectifier bridge. Alternative to the standard manual override there are knob, boot and mechanical detent device. The valve is available also with mounting interface with the Y port for external drain and with fixed or adjustable soft-shifting devices.
描述
DS5 是閥芯方向閥，用于控制流道和流向，用于底板安裝。 它們具有 3 端口和 4 端口設計，帶有彈簧復位或機械制動。 閥體由高強度鑄鐵制成，內部通道較寬，以最大限度地減少流動壓降。 使用帶有可互換線圈的濕式電樞螺線管。 該閥可用于直流或交流電磁閥。 通過使用帶有內置整流橋的連接器，直流螺線管也可以由交流電源供電。 除了標準手動操作之外，還有旋鈕、靴子和機械制動裝置。 該閥還提供帶有用于外部排放的 Y 端口的安裝接口以及固定或可調節的軟換檔裝置。
DUPLOMATIC電磁換向閥其他常見型號：
DUPLOMATIC DS5-S9/13N-D220K1/F/F
DUPLOMATIC DS5-S1/11N-A110-50K1
DUPLOMATIC DS5-S1/12V-D12K1/FCM
DUPLOMATIC DS5-TA02/13N-D12K1/FCM
DUPLOMATIC DS5-S2/12V-D12K1/FCM
DUPLOMATIC DS5-S9/13N-D24K1/F/CM
DUPLOMATIC PEDAL TANDEM MOD VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
