REXROTH蓄能器安全塊0532VAW20/3/FKM/211/D/Z/00/-/-/A1 0532015131技術參數

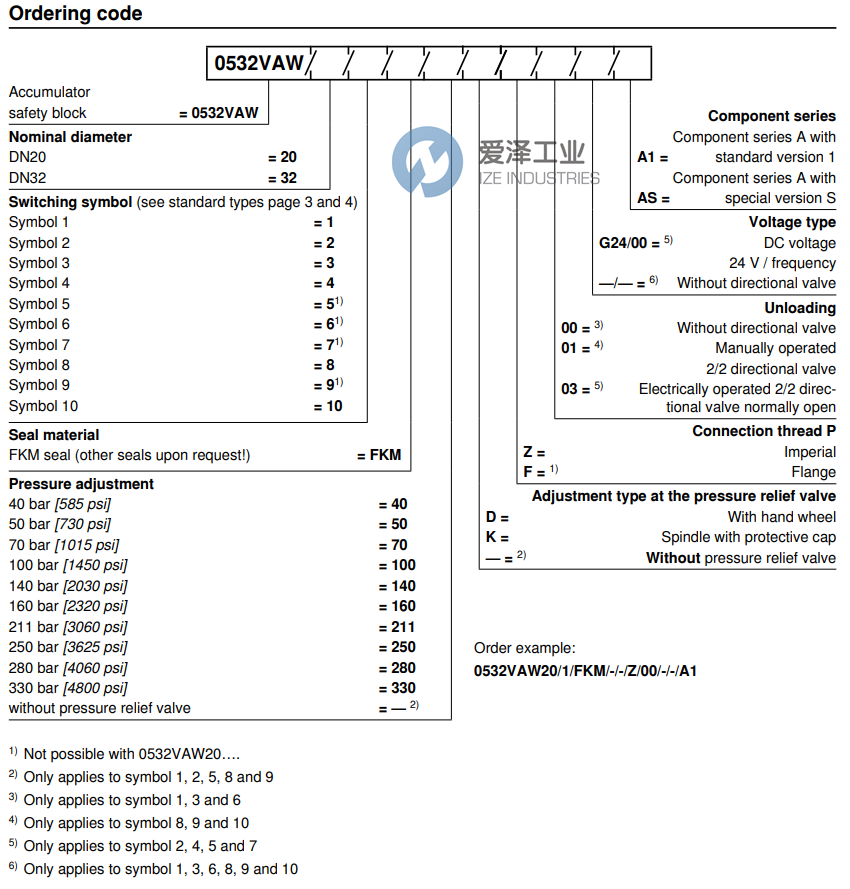

Code | 0532VAW20/3/FKM/211/D/Z/00/-/-/A1 |
Accumulator safety block | 0532VAW |
Nominal diameter | 20 = DN20 |
Switching symbol | 3 = Symbol 3 |
Seal material | FKM = FKM seal (other seals upon request!) |
Pressure adjustment | 211 = 211 bar [3060 psi] |
Adjustment type at the pressure relief valve | D = With hand wheel |
Connection thread P | Z = Imperial |
Unloading | 00 = Without directional valve |
Voltage type | —/— = Without directional valve |
Component series | A1 = Component series A with standard version 1 |
REXROTH蓄能器安全塊0532VAW系列介紹
特征
? 準備連接
? 手動或電磁卸料
? 大量變體
? 緊湊型設計
? 符合數據表 50153 的直動式泄壓閥
? 公稱通徑DN20、DN32
? 組件系列 A1
? 最大工作壓力 330 bar [4800 psi]
Features
? Ready for connection
? Manual or electro-magnetic unloading
? Large number of variants
? Compact design
? Direct operated pressure relief valve according to data sheet 50153
? Nominal diameter DN20, DN32
? Component series A1
? Maximum operating pressure 330 bar [4800 psi]
REXROTH蓄能器安全塊0532VAW系列選型
REXROTH蓄能器安全塊0532VAW系列其他常用型號：
REXROTH 0532VAM20/ 1/ FKM/-/-/Z/00/-/-/A1 0532015120
REXROTH 0532VAM20/2/FKM/-/-/Z/03/G/24/00/A1 0532015121
REXROTH 0532VAM20/3/FKM/050/D/Z/00/-/-/A1 R901192665
REXROTH 0532VAM20/3/ FKM/070/D/Z/00/-/-/A1 0532015123
REXROTH 0532VAM20/3/ FKM/100/D/Z/00/-/-/A1 0532015125
REXROTH 0532VAM20/3/FKM/140/D/Z/00/-/-/A1 0532015127
REXROTH 0532VAM20/3/ FKM/160/D/Z/00/-/-/A1 0532015129
REXROTH 0532VAM20/3/FKM/211/D/Z/00/-/-/A1 0532015131
REXROTH 0532VAM20/3/ FKM/250/D/Z/00/-/-/A1 0532015133
REXROTH 0532VAM20/3/FKM/280/D/Z/00/-/-/A1 0532015137
REXROTH 0532VAM20/3/FKM/330/D/Z/00/-/-/A1 0532015135
REXROTH 0532VAM20/4/FKM/070/D/Z/03/G/24/00/A1 0532015122
REXROTH 0532VAM20/4/FKM/100/D/Z/03/G/24/00/A1 0532015124
REXROTH 0532VAM20/4/ FKM/160/D/Z/03/G/24/00/A1 0532015126
REXROTH 0532VAM20/4/FKM/211/D/Z/03/G/24/00/A1 0532015128
REXROTH 0532VAM20/4/FKM/250/D/Z/03/G/24/00/A1 0532015130
REXROTH 0532VAM20/4/FKM/280/D/Z/03/G/24/00/A1 0532015134
REXROTH 0532VAM20/4/ FKM/330/D/Z/03/G/24/00/A1 0532015132
REXROTH 0532VAM20/8/ FKM/-/-/Z/01/-/-/A1 0532015139
REXROTH 0532VAM20/ 10/ FKM/211/K/Z/01/-/-/A1 R901131132
REXROTH 0532VAM20/10/FKM/330/K/Z/01/-/-/A1 R901174602
REXROTH ACCUMULATOR SAFETY BLOCK NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH蓄能器安全塊0532VAW20/3/FKM/211/D/Z/00/-/-/A1 0532015131的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
REXROTH蓄能器安全塊0532VAW系列0532VAW20/3/FKM/211/D/Z/00/-/-/A1 0532015131技術參數及選型
