WANDFLUH電磁提升閥SVSPM33系列技術參數
GENERAL SPECIFICATIONS | |
Designation | 2/2-way poppet valve |
Construction | Pilot operated |
Mounting | Screw-in cartridge construction |
Nominal size | M33 x 2 according to ISO 7789 |
Actuation | Switching solenoid |
Ambient temperature | -25…+70 °C |
Weight | 0,7 kg |
HYDRAULIC SPECIFICATIONS | |
Working pressure | p max = 350 bar |
Opening pressure | 1,5 bar 1 → 2 version CB / BC |
Maximum volume flow | Q max = 150 l/min, see characteristics |
Leakage oil | Poppet type, max. 0,15 ml / min (approx. 3 drops / min) at 30 cSt |
Fluid | Mineral oil, other fluid on request |
Viscosity range | 12 mm2 /s…320 mm2 /s |
Temperature range fluid | -25…+70 °C (NBR) -20…+70 °C (FKM) |
Contamination efficiency | Class 20 / 18 / 14 |
Filtration | Required filtration grade ? 10…16 ≥ 75, |

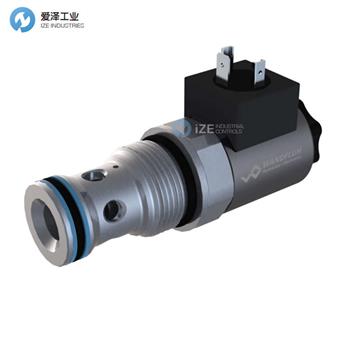

WANDFLUH電磁提升閥SVSPM33系列介紹
先導式 2/2 通電磁提升閥采用符合 ISO 7789 的腔體螺紋插裝結構。AB 和 CB 執行在通電位置關閉，BA 和 BC 執行在斷電位置。 在這種情況下，主閥芯通過施加的壓力幾乎無泄漏地關閉。
Pilot operated 2/2-way solenoid poppet valve in screw-in cartridge construction for cavity according to ISO 7789. The AB and CB execution is closed in the energised position, the BA and BC execution in the de-energised position. In this, the main spool closes practically leakage-free by means of the applied pressure.

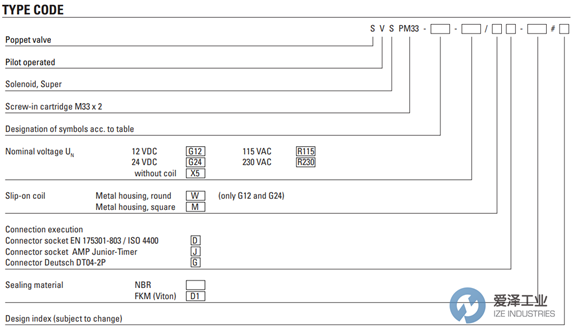

WANDFLUH電磁提升閥SVSPM33系列選型
WANDFLUH電磁提升閥SVSPM33系列其他常用型號：
WANDFLUH SVSPM33-BA-G24/MD-D2
WANDFLUH SVSPM33-BC-G24/WD
WANDFLUH SVSPM33-BA-G24/WD
WANDFLUH SVSPM33-BA-G24/KD35
WANDFLUH SVSPM33-CB-X5
WANDFLUH SVSPM33-AB-G24/WD
WANDFLUH SVSPM33-DC-G24/K
