VIVOLO單向泵X1P系列技術參數
標準單向液壓泵，采用鋁材制造，帶外齒輪。
屬于第1組組件。
特點與功能：
該型號的法蘭直徑為25.4毫米。泵的旋轉方向可以順時針或逆時針，無需添加任何組件即可反轉*，以?xún)?yōu)化空間存儲并根據需求調整產品。關于更改旋轉方向的操作說明，請參見本目錄第19頁。
*適用于該型號的所有版本，除了出口或進口在前法蘭的特殊版本。
技術參數：
排量范圍：0.91 cm3/轉至9.88 cm3/轉
最大壓力：高達300巴
轉速范圍：最高6000 rpm
可用選項：
Viton密封圈
最大壓力閥
增強軸密封，適用于連續壓力高達6巴
進口和出口可位于機體、前法蘭或后蓋
雙軸設計
其他軸類型可用：
錐形軸 1:8帶鍵
銑削軸
花鍵軸

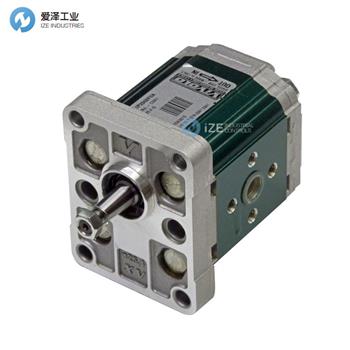

Standard unidirectional hydraulic pump in aluminium and with external gears.
It is a component of group 1.
Features and functions
The flange of this model has a diameter of 25,4 mm. The rotation verse of the pump is clockwise or counterclockwise and you can reverse it without having to add any components* to optimize storage space and adapt the product to your needs. Please refer to page 19 of this catalogue for instructions on changing the rotation verse.
* Valid for all versions of this model except those with the outlet or inlet in the front flange.
Technical Data
Displacements from 0.91 cm3/rev to 9.88 cm3/rev
Maximum pressures up to 300 bar
Rotation speeds up to 6000 rpm
Options available
Viton
Maximum pressure valve
Reinforced shaft seal for pressures up to 6 bar continuous
Inlet and outlet in the body, front flange or back cover
Double shaft
Other shafts available:
Tapered shaft 1:8 with key
Milled shaft
Splined shaft
VIVOLO單向泵XV系列其他常用型號：
VIVOLO X1P1601FIIA
VIVOLO X1P1701FIIA
VIVOLO X1P1801FIIA
VIVOLO X1P2001FIIA
VIVOLO X1P2101FIIA
VIVOLO X1P2301FIIA
VIVOLO X1P2501FIIA
VIVOLO X1P2701FIIA
VIVOLO X1P2901FIIA
VIVOLO X1P3101FIIA
VIVOLO X1P3201FIIA
VIVOLO X1P3401FIIA
VIVOLO X1P3601FIIA
VIVOLO X1P2302FBBA
VIVOLO X1P2902FIIA
VIVOLO X1P3143DZZB
VIVOLO UNIDIRECTIONAL PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于VIVOLO單向泵X1P2902FIIA的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for VIVOLO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
VIVOLO單向泵X1P系列X1P2902FIIA技術參數
