DEPA氣動隔膜泵DL40-FA-EEE規格描述
DL=Standard series made of cast metal, plastic and stainless steel, polished |
40=Connections G1 1/2" DN 40 |
- |
FA=Cast aluminium Stainless steel Cast aluminium |
- |
E=EPDM |
E=EPDM |
E=EPDM |
DEPA氣動隔膜泵L系列介紹

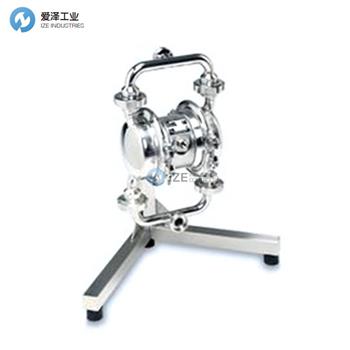

DEPA? Air Operated Diaphragm Pumps, Stainless Steel Pumps, Series L, Type DL-UEV
The DEPA? DL-UEV pumps are made of polished stainless steel with a surface finish quality of up to Ra* 0,8 μm and FDA (Food & Drug Administration) approved elastomer materials. The pumps distinguish themselves through their rugged construction, quick & easy dismantling, CIP (Clean In Place) and SIP (Sterilize In Place). Through the use of the stainless steel frame, the pump can be easily and quickly drained/emptied after CIP.
*Roughness Average
Features And Benefits
The Pumps are designed to meet the hygienic standards in the industry.
Through the high surface quality finish of Ra ≤ 0,8 μm the cleaning & sterilizing processes are improved and product build-up is minimized.
Suitable for CIP & SIP
Technical Details
MATERIALS OF CONSTRUCTION
Housing Material Stainless Steel 1.4404/ 316L
Clamp band design
Center Block 1.4301/ 304
Air chamber 1.4301/ 304
SIZE RANGE
1” (DL25), 1 ?” (DL40), 2″ (DL50), 3″ (DL80)
DEPA? 氣動隔膜泵，不銹鋼泵，L 系列，DL-UEV 型
DEPA? DL-UEV 泵由表面光潔度高達 Ra* 0.8 μm 的拋光不銹鋼和 FDA（食品和藥物管理局）批準的彈性體材料制成。這些泵通過其堅固的結構、快速簡便的拆卸、CIP（就地清潔）和 SIP（就地消毒）而與眾不同。通過使用不銹鋼框架，泵可以在 CIP 后輕松快速地排空/排空。
*粗糙度平均值
特點和好處
泵的設計符合行業衛生標準。
通過 Ra ≤ 0,8 μm 的高表面質量光潔度，清潔和消毒過程得到改進，產品堆積最小化。
適用于 CIP 和 SIP
技術細節
建筑材料
外殼材料 不銹鋼 1.4404/ 316L
夾帶設計
中心座 1.4301/ 304
氣室 1.4301/ 304
尺寸范圍
1” (DL25), 1 ?” (DL40), 2” (DL50), 3” (DL80)
DEPA氣動隔膜泵L系列其他常用型號：
DEPA DL40-FA-EEE
DEPA DL40-PP-EEE
DEPA DL40-FA-BBB
