FLOJET隔膜泵N5100020A技術參數
Specifications | N5100020A |
Wetted Parts | Housing material - Acetal Copolymer |
Flow Rate | Max Up to 2.5 (gpm) Max Up to 79.5 (lpm) |
Air Supply Pressure | 20 to 80 (psi) 1.4 to 5.6 (bar) |
Temperature Range | 40 - 120 (°F) 4.4 - 48.9 (°C) |
Self Priming | Up to 28ft (8.5m) |
Port(s) | Air Inlet & Outlet 1/4” (6.3 mm) Barb Liquid Inlet 3/8” (9.5 mm) Barb Liquid Outlet 3/8” (9.5 mm) Barb. |
Weight | 0.5 Kg (kg) 1.10 (lb) |
Diaphragm | Viton? |
Check Valve | Viton? |
FLOJET隔膜泵N5100系列特點
Overview
PRODUCT FEATURES

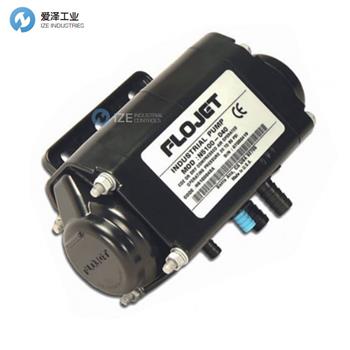

Model No.: N5100 Series
Compact design with plug-in hose connections for quick installation
Variety of elastomers to ensure chemical compatibility
Variable capacity from zero to the maximum flow
No pressure relief or bypass plumbing required
Excellent self-priming; pump may be located above the liquid level
FLOJET Industrial N5100 Series Pumps are designed for light general commercial and industrial applications. These pumps are constructed from a selection of materials for handling a broad range of chemicals.
Flojet air-operated diaphragm pumps offer excellent self-priming capability. Pumps can be located above the supply tank. A suctionside foot valve is recommended for best operation. Liquid pressure is regulated by supply air pressure. No bypass or pressure relief plumbing is necessary. Choice of EP/PP blend, Buna, or FKM elastomers provide a wide range of chemical compatibility. Quick disconnect liquid and gas port fittings provide easy installation.
概述
產品特點
型號：N5100 系列
緊湊型設計，帶插入式軟管連接，可快速安裝
多種彈性體確?；瘜W(xué)相容性
從零到最大流量的可變?nèi)萘?/p>
無需泄壓或旁路管道
出色的自吸能力； 泵可能位于液位上方
FLOJET 工業 N5100 系列泵專為輕型一般商業和工業應用而設計。 這些泵由一系列用于處理各種化學品的材料制成。
Flojet 氣動隔膜泵具有出色的自吸能力。 泵可以位于供應罐上方。 建議使用吸入側底閥以獲得最佳操作。 液體壓力由供氣壓力調節。 不需要旁通或泄壓管道。 EP/PP 共混物、丁腈橡膠或 FKM 彈性體的選擇提供了廣泛的化學相容性。 快速斷開液體和氣體端口接頭提供了簡單的安裝。
FLOJET隔膜泵N5100系列其他常用型號：
FLOJET N5100010A
FLOJET N5100020A
FLOJET N5100040A
