TRELLEBORG油封WEF200900-M12產品參數
Rod Diameter dN f8/h9 | 90.0*) |
Groove Diameter D3 +H9 | 102.2 |
Groove Width L3 +0.2 | 8.1 |
Bore Diameter D4 H11 | 92 |
Radius r1 max. | 1 |
Step Width a min. | 4 |
TSS Part No. | WEF200900 |
O-Ring Size | 94.84 x 3.53 |
TRELLEBORG油封WEF系列介紹
Description

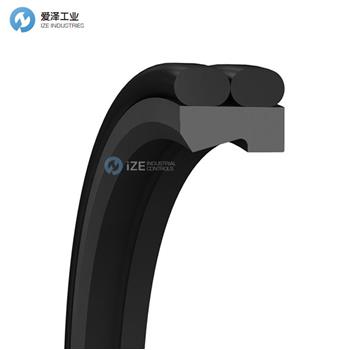

The Turcon? Excluder? F is a double-acting scraper with two geometrically different scraper lips, which are positioned back-to-back. The scraper is always installed with 2 O-Rings as elastic energizing elements in one groove. The scraper function itself is performed by the Excluder? F, Turcon? element. The O-Rings maintains the pressure of the scraper lips against the sliding surface and compensates deflections of the piston rod.
描述
Turcon? Excluder? F 是一種雙作用刮刀,具有兩個幾何形狀不同的刮刀唇,它們背靠背定位。 刮刀始終在一個凹槽中安裝 2 個 O 形圈作為彈性增能元件。 刮板功能本身由 Excluder? F、Turcon? 元件執行。 O 形圈保持刮唇對滑動表面的壓力并補償活塞桿的偏轉。
TRELLEBORG油封WEF系列其他常見型號:
TRELLEBORG WEF100600
TRELLEBORG WEF100630
TRELLEBORG WEF100650
TRELLEBORG WEF200700
TRELLEBORG WEF200750
TRELLEBORG WEF200800
TRELLEBORG WEF200850
TRELLEBORG WEF200900
TRELLEBORG WEF200950
TRELLEBORG WEF201000
TRELLEBORG WEF201050
TRELLEBORG WEF201100
TRELLEBORG WEF201150
TRELLEBORG WEF201200
TRELLEBORG WEF201250
TRELLEBORG Radial oil seal NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TRELLEBORG油封WEF200900-M12的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for TRELLEBORG products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
