KOSHIN油泵GM-2524H-4技術參數
PUMP | |
Dia of Hose I nlet | 25 mm (1") |
Dia of Hose O utlet | 20 mm (?") |
Connection Thread | Inner Pipe Thread |
Max. Delivery Pressure | 0.2 MPa (2 kg f/cm2) |
Delivery Volume | 20 L/min (5 USG/min) |
Applicable Viscosity | 800 cst |
MOTOR | |
Voltage | DC 24 V |
Rated Current | 16 A |
Output | 200 W |
Revolution | 6200 rpm |
Rating | 25 min |
Power Cord | 5 m (16 ft) |
Net Weight | 8.5 kg (19 lbs) |
Gross Weight | 9.2 kg (21 lbs) |
Dimensions L×W×H (mm) | 310 × 178 × 253 |

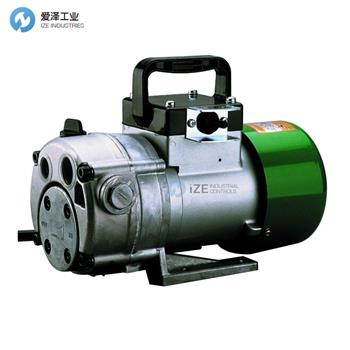

KOSHIN油泵GM-2524H-4產品介紹
? 強力的泵輸送高粘度油。(高達 800 cst)
? 強烈建議更換機油。
? 安全旁通閥保護泵。
? Powerful pump transfers high viscosity oil. (Up to 800 cst)
? Highly recommended for motor oil change.
? Safety by-pass valve protects pump.
KOSHIN油泵GM系列其他常用型號:
KOSHIN GM-2524H-4
KOSHIN GM-2010
KOSHIN GM-2510H
