AVENTICS換向閥581系列技術參數
Type | Spool valve |
basic valve with electrical connector | Basic valve without pilot valve |
Pilot | External Internal |
Sealing principle | Soft sealing |
Blocking principle | Single base plate principle |
Connection type | Plate connection |
Standards | ISO 5599-1, ISO 1 |
Working pressure min./max. | -0,95 ... 16 bar |
Control pressure min./max. | 3 ... 16 bar |
Ambient temperature min./max. | -20 ... 70 °C |
Medium temperature min./max. | -20 ... 70 °C |
Medium | Compressed air |
Max. particle size | 50 μm |
Oil content of compressed air | 0 ... 5 mg/m3 |
Nominal flow Qn | 1100 l/min |
Flow conductance C | 4,3 l/(s*bar) |
Protection class with connection | IP65 |
Duty cycle | 100% |
Mounting screw | with hexagon socket |
Mounting screw tightening torque | 2 Nm |
Weight | 0,21 kg |
AVENTICS換向閥581系列介紹
5/3 方向閥，581 系列，規格 1
- ISO 5599-1
- ISO 1
- 5/3
- CNOMO 先導閥的基本閥
- 中心封閉 中心排氣 中心加壓
- Qn = 1100 l/min
- 壓縮空氣連接輸出 底板 ISO 5599-1

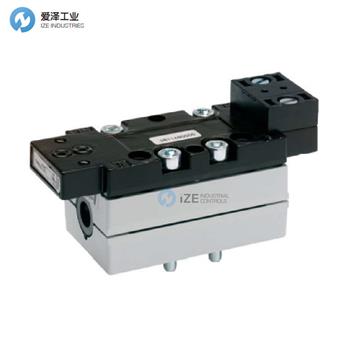

5/3-directional valve, Series 581, size 1
- ISO 5599-1
- ISO 1
- 5/3
- Basic valve for CNOMO pilot valve
- closed center exhausted center pressurized center
- Qn = 1100 l/min
- Compressed air connection output Base plate ISO 5599-1
AVENTICS換向閥581系列其他常用型號：
AVENTICS 5811480000
AVENTICS 5811481000
AVENTICS 5811580000
AVENTICS 5811581000
AVENTICS 5811780000
AVENTICS 5811781000
AVENTICS VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AVENTICS換向閥5811481000的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AVENTICS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
AVENTICS換向閥581系列5811481000技術參數及介紹
