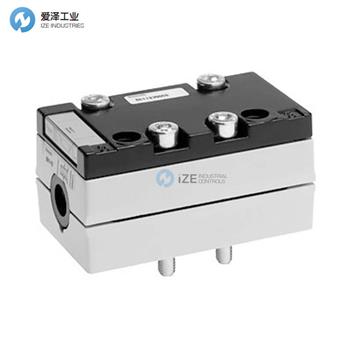

AVENTICS方向閥5811230000技術參數
Specifications | |
Activation | Pneumatically |
Switching principle | 5/2, double solenoid |
Connection type | Plate connection |
Nominal flow Qn | 1400 l/min |
Compressed air connection output | Base plate ISO 5599-1 |
Min. working pressure | -0.95 bar |
Max. working pressure | 16 bar |
Sealing principle | Soft seal |
Standards | ISO 5599-1 |
Valve type | Spool valve |
Version | ISO 1 |
Can be assembled into blocks | Can be assembled into blocks |
Blocking principle | Single base plate principle |
Min. control pressure | 1.5 bar |
Max. control pressure | 16 bar |
Min. ambient temperature | -20 °C |
Max. ambient temperature | 70 °C |
Medium | Compressed air |
Max. particle size | 50 μm |
Min. oil content of compressed air | 0 mg/m3 |
Max. oil content of compressed air | 5 mg/m3 |
Compressed air connection input | Base plate ISO 5599-1 |
Flow conductance C | 5.2 l/(s*bar) |
Mounting screw | with hexagon socket |
Mounting screw tightening torque | 2 Nm |
AVENTICS方向閥581系列介紹
特征
標準化閥門系統
ISO 尺寸 1 至 4 可用
堅固的設計
集成排氣節流閥
多種電壓范圍
壓力范圍可達 16 bar
CNOMO接口
尺寸小
快速換檔時間
通過在線配置器輕松靈活地定制特定配置
Features
Standardized valve system
ISO size 1 to 4 available
Robust design
Integrated exhaust throttles
Numerous voltage ranges
Pressure range up to 16 bar possible
CNOMO interface
Small dimensions
Fast shifting times
Easy and flexible custom specific configurations via online configurator
AVENTICS方向閥581系列其他常用型號：
AVENTICS 5811130000
AVENTICS 5811131000
AVENTICS 5811231000
AVENTICS 5811230000
AVENTICS 5811330000
AVENTICS 5811331000
