AVENTICS換向閥HF04系列技術參數
Version | Spool valve, positive overlapping |
Activation | Electrically |
Pilot | External, Internal |
Sealing principle | Soft sealing |
Blocking principle | Double base plate principle |
Working pressure min./max. | -0.9 ... 10 bar |
Control pressure min./max. | 3 ... 8 bar |
Ambient temperature min./max. | -5 ... 50 °C |
Medium temperature min./max. | 0 ... 50 °C |
Medium | Compressed air |
Max. particle size | 5 μm |
Oil content of compressed air | 0 ... 5 mg/m3 |
Nominal flow Qn | 400 l/min |
Pilot control exhaust | With collective pilot air exhaust |
Protection class with connection | IP65 |
Protective circuit | Z-diode |
Reverse polarity protection | Protected against polarity reversal |
LED status display | Yellow |
Duty cycle | 1 |
Typ. switch-on time | 13 ms |
Typ. switch-off time | 20 ms |
mounting screws | cross recessed DIN EN ISO 4757-Z0 |
Mounting screw tightening torque | 0.25 Nm |
Weight | 0.048 kg |
AVENTICS換向閥HF04系列介紹
2x3/2 換向閥，HF04 系列
- 適用系列：HF04、LP04、HF04-XF
- 2x3/2
- Qn = 400 升/分鐘
- 先導閥寬度：10 mm
- NC/NC NO/NO NC/NO
- 板連接
- 手動操作：帶制動器
- 試點：外部，內部

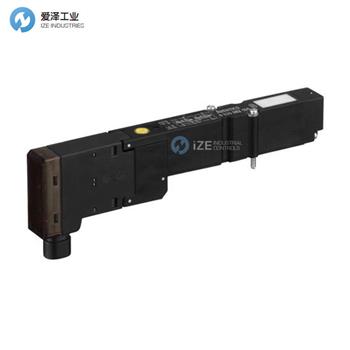

2x3/2-directional valve, Series HF04
- For series : HF04, LP04, HF04-XF
- 2x3/2
- Qn = 400 l/min
- Pilot valve width : 10 mm
- NC/NC NO/NO NC/NO
- Plate connection
- Manual override : with detent
- Pilot : External, Internal
AVENTICS換向閥HF04系列其他常用型號：
AVENTICS 0820062101
AVENTICS 0820062201
AVENTICS 0820062301
AVENTICS 0820062102
AVENTICS 0820062202
AVENTICS 0820062302
AVENTICS 0820062051
AVENTICS 0820062001
AVENTICS 0820062501
AVENTICS 0820062052
AVENTICS 0820062002
AVENTICS 0820062502
AVENTICS Directional Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AVENTICS換向閥0820062101的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AVENTICS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
AVENTICS換向閥0820062101技術參數及介紹
