LITTLE GIANT磁性驅動泵TE-3-MD-HC 581604技術規格
Electrical | |
HP | 1/25 hp |
Frequency | 60 Hz |
Amps - Full Load | 1.3A |
Full Load Watts | 107 W |
Volts | 115 VAC |
Cord Length | 6ft/1.83 m |
Operation | |
Max Flow Rate- 60 Hz | 9.75 gpm / 585 gph/ 2214 Lph/ 36.91 Lpm/ 2.21 m/h |
Flow Rate At lft | 9.75 gpm / 585 gph/ 2214 Lph/ 36.91 Lpm/ 2.21 m/h |
Shut-Off | 16.3ft/ 4.97 m |
Max PSIG - 60Hz | 7.1 PSI |
Max Fluid Temperature | 200°F |
Materials of Construction | |
Discharge Head Material | Thermoplastic |
Installation | |
Discharge Type | Threaded - MNPT |
Suction Type | Threaded - FNPT |
Product Weight | 8.8Ib/ 3.99 kg |
Product Width | 4"/ 10.16 cm |
Product Height | 5"/ 12.7 cm . |
Product Length | 8.9" / 22.61 cm |
Product Weight w/ Pack | 8.5 Ib/ 3.86 kg |
Carton Width | 7.06 " / 17.94 cm |
Carton Height | 6.44"/ 16.35 cm |
Carton Length | 11.31 " / 28.74 cm |
LITTLE GIANT磁性驅動泵 TE-3-MD-HC介紹
581604 - TE-3-MD-HC

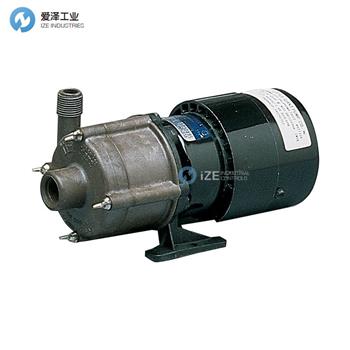

Magnetically driven pumps for highly corrosive chemicals and solutions. The MD-HC Series features leakproof, seal-less magnetic drives and are designed for in-line, non-submersed use. These pumps feature polyphenylene sulfide (e.g. Ryton?), Viton?, carbon and ceramic parts. Thermally protected totally enclosed fan-cooled motor with ball bearings. 6 ft power cord and 3-prong molded plug.
581604 - TE-3-MD-HC
用于高腐蝕性化學品和溶液的磁力驅動泵。 MD-HC 系列具有防漏、無密封磁力驅動器，專為直列式、非浸沒式使用而設計。 這些泵采用聚苯硫醚（例如 Ryton?）、Viton?、碳和陶瓷部件。 帶滾珠軸承的熱保護全封閉風扇冷卻電機。 6 英尺電源線和 3 芯模制插頭。
LITTLE GIANT磁性驅動泵其他常用型號：
LITTLE GIANT TE-3-MD-HC
LITTLE GIANT 581604
LITTLE GIANT 581614
LITTLE GIANT pump NEW + ORIGINAL+ ONE YEAR WARRANTY
