TRELLEBORG油封TLDOA4292-2CP00產品參數
TSS Part No:TLDOA
Inside Diameter x 10:4292
Material No.:2CP00
TSS 零件號:TLDOA
內徑×10:4292
物料編號:2CP00
TRELLEBORG油封TLDOA系列介紹

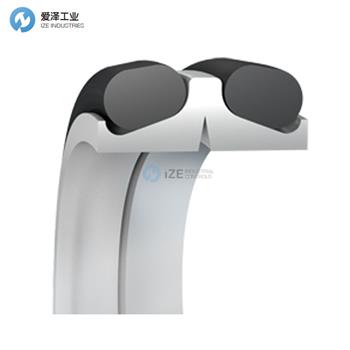

Also known as Heavy Duty Seals, these seals are used in rotating applications. They function well in harsh environments where they have to withstand the ingress of rough and abrasive external media. Trelleborg Type DO is the most common form that uses an Trelleborg O-Ring as a secondary sealing element. Depending on seal type the following standard elastomers are used: - Type DO - Cast Iron and Acrylonitrile Butadiene Rubber (NBR) - Type DO - Bearing Steel (1.3505) Acrylonitrile Butadiene Rubber (NBR)
Size Range:90 mm to 429,2 mm
Temperature:-30 °C to 150 °C
Pressure (max):0,15 MPa
Speed (max):2,2 m/s
這些密封件也稱為重型密封件,用于旋轉應用。它們?cè)诒仨毘惺艽植诤湍ノg性外部介質侵入的惡劣環境中運行良好。 特瑞堡DO型是使用特瑞堡O型圈作為輔助密封元件的最常見形式。根據密封件類型,使用以下標準彈性體: - DO型 - 鑄鐵和丙烯腈丁二烯橡膠 (NBR) - DO型 - 軸承鋼 (1.3505) 丙烯腈丁二烯橡膠 (NBR)
尺寸范圍:90 毫米至 429.2 毫米
溫度:-30 °C 至 150 °C
壓力(最大):0,15 MPa
速度(最大):2,2 m/s
TRELLEBORG油封TLDOA系列其他常見型號:
TRELLEBORG TLDOA5800-2CP00
TRELLEBORG TLDOA4292-2CP00
TRELLEBORG TLDOA3870
TRELLEBORG TLDOA3870
TRELLEBORG TLDOA4285
TRELLEBORG TLDOA4290
TRELLEBORG TLDOA4292
TRELLEBORG TLDOB4292
TRELLEBORG TLDOA4700
TRELLEBORG TLDOA5054
TRELLEBORG TLDOA5300
TRELLEBORG TLDOA5800
TRELLEBORG TLDOA5910
TRELLEBORG TLDOA6670
TRELLEBORG TLDOA7100
TRELLEBORG TLDOA8300
TRELLEBORG Radial oil seal NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TRELLEBORG油封TLDOA4292-2CP00的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for TRELLEBORG products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
TRELLEBORG油封TLDOA4292-2CP00規格
