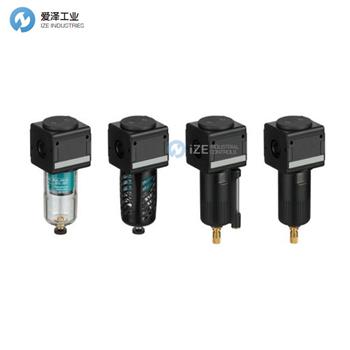

AVENTICS過濾器NL4-FLC-G012-PBS-AO-00.01規格描述
Specifications | |
Type | Microfilter |
Parts | Microfilter |
Port | G 1/2 |
filter porosity | 0.01 μm |
Nominal flow Qn | 720 l/min |
Condensate drain | fully automatic, open without pressure |
Working pressure min. | 1.5 bar |
Working pressure max | 16 bar |
Min. ambient temperature | -10 °C |
Max. ambient temperature | 60 °C |
Min. medium temperature | -10 °C |
Max. medium temperature | 60 °C |
Medium | Compressed air, Neutral gases |
Certificates | suitable for ATEX |
ATEX | suitable for ATEX |
Max. achievable compressed air class acc. to ISO 8573-1:2010 | 1 : - : 2 |
Filter reservoir volume | 25 cm3 |
Filter element | exchangeable |
Recommended pre-filtering | 0.3 μm |
Weight | 1.29 kg |
Mounting orientation | vertical |
Type | Can be assembled into blocks |
Reservoir | reservoir, polycarbonate, with metal protective guard |
Housing material | Die cast zinc |
Material front plate | Acrylonitrile butadiene styrene |
AVENTICS過濾器NL4-FLC系列其他常用型號：
AVENTICS NL4-FLC-G012-PBS-AO-00.01
AVENTICS NL4-FLC-G012-SSS-HO-00
AVENTICS NL4-FLC-G012-PBS-AO-00
AVENTICS NL4-FLC-G012-SSS-AO-00
AVENTICS NL4-FLC-G012-PBS-HO-00
