FREUDENBERG隔膜式蓄能器350-1315-072-641技術規格
design | DACC |
brand | Freudenberg |
country of origin | DE |
inner thread oil side (IG) | G 3/4 |
outer thread oil side (AG) | none |
gas port (gas port) | Standard EU M28x1,5 |
IG insertion depth oil side (A) | 16 |
temperature min. (temp. min.) | -40 ° C |
temperature max. (temp. max.) | 80 ° C |
oil port wrench size (E) | WS 41 |
outer diameter (outer ?) | 169 mm |
height (H) | 316 mm |
shore hardness | |
material | ECO |
packaging unit | 1 pcs. |
net weight | 10500 gr. |
FREUDENBERG隔膜式蓄能器350-1315-072-641產品介紹
隔膜蓄能器對應于歐洲的電壓指令2014/68/EU
焊接,可再充氣設計,帶有氣口(M28x1,5)
用作不同類型的液壓能量蓄能器,用于許多不同的應用領域
隔膜蓄能器變化為:標稱體積,允許工作壓力,氣體預負載,隔膜材料和流體連接。
Diaphragm accumulators correspond to the European directive 2014/68/EU
Welded, refillable design with a gas port (M28 x 1,5)
Usage as hydraulic energy accumulators in diverse types for many different areas of application
Diaphragm accumulators vary in: nominal volume, permissible operating pressure, gas preload, diaphragm material and fluid connection.

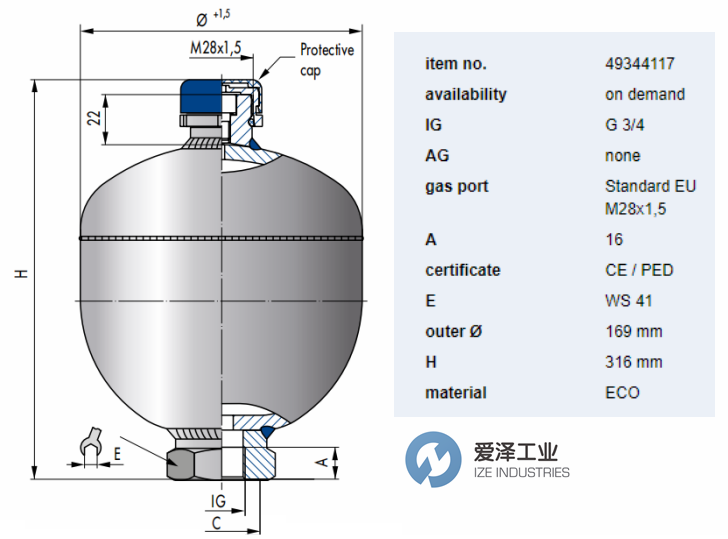

FREUDENBERG隔膜式蓄能器350-1315-072-641結構介紹
FREUDENBERG隔膜式蓄能器其他常用型號:
FREUDENBERG 350-1315-072-641
FREUDENBERG 280-1315-702-611
FREUDENBERG 280-1315-112-741
FREUDENBERG 280-1315-102-741
FREUDENBERG 280-1315-112-711
FREUDENBERG 350-1315-762-641
FREUDENBERG 350-1315-062-611
FREUDENBERG 350-1315-102-711
