MAGNOM過濾器555103005產品參數
UNIT WEIGHT AND DIMENSIONAL INFORMATION | |
Part Number | 555103005 |
Unit | 1" NPT |
Connection/ Size | 1" NPT |
Weight KG / (0Z) | 0.6 / (21) |
DIM.A CM/(Inch) | 8.6/ (3.37) |
DIM.B CM /(Inch) | 8 / (3.12) |
MAGNOM過濾器555103005產品介紹及選型

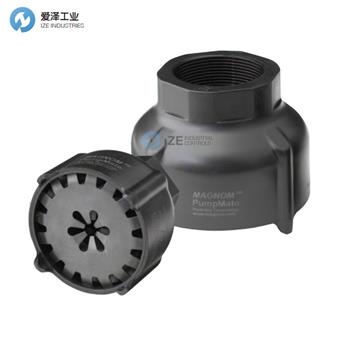

The Magnom PumpMate Magnetic Filter (Magnetic Suction Strainer) is specifically designed to protect hydraulic pumps on the suction side, inside the tank (reservoir).
The patented design filters the suction side of pumps. Unlike a standard Suction Strainer which really is NOT a filter Magnom provides the performance of a 1 micron absolute hydraulic filter cartridge on the suction side of a pump. This is accomplished without wash-off of collected particles as seen with standard magnetic filters, suction strainers or standard hydraulic filters.
This is a generational leap in technology for the protection of critical hydraulic and lubrication pumps with virtually no pressure drop or restriction to flow, even when the PumpMate unit is ‘full’ of contaminant.
With negligible risk of pump cavitation, the Magnom PumpMate removes fine ferrous and some nonferrous materials to sub-micron levels and has a very high contaminant holding capacity, offering OEMs and Operators a true ‘fit and forget’ solution.
Special Features & Benefits
Fine filtration without risk of pump cavitation
Negligible pressure drop & full fluid flow even when full of contaminant
Removes ferrous and some nonferrous particles down to submicron sizes
Contaminant storage without ‘wash off’ of collected particles
Applications
Primary: Hydraulics
Secondary: Transmissions, Lubrication Oils, Fuel
Subject to application: Coolants
Magnom PumpMate 磁性過濾器（磁性吸入過濾器）專門設計用于保護吸入側、油箱（水箱）內的液壓泵。
專利設計過濾泵的吸入側。與真正不是過濾器的標準吸入過濾器不同，Magnom 在泵的吸入側提供 1 微米絕對液壓濾芯的性能。如標準磁性過濾器、吸入過濾器或標準液壓過濾器所見，這是無需沖洗收集到的顆粒即可完成的。
這是保護關鍵液壓泵和潤滑泵的技術上的一次飛躍，幾乎沒有壓降或流量限制，即使 PumpMate 裝置“充滿”污染物。
Magnom PumpMate 泵氣蝕風險可忽略不計，可將細小的黑色金屬和一些有色金屬材料去除到亞微米級別，并具有非常高的污染物保持能力，為 OEM 和運營商提供了真正的“安裝即忘”的解決方案。
特殊功能和優點
無泵氣蝕風險的精細過濾
即使在充滿污染物的情況下，壓降也可以忽略不計和全流量
去除亞微米級的黑色金屬和一些有色金屬顆粒
不會“洗掉”收集到的顆粒的污染物儲存
應用
主要：液壓
次要：變速箱、潤滑油、燃料
適用于：冷卻液
MAGNOM過濾器其他常見型號：
MAGNOM 555103002
MAGNOM 555103005
MAGNOM 555103008
MAGNOM 555103014
MAGNOM 555103020
MAGNOM The filter cartridge NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MAGNOM過濾器555103005的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MAGNOM products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: .
