DELTROL閥GI21S技術規格
SPeCIFICATIOnS | |
Maximum Operating Pressure (non-Shock Service) | Carbon Steel: 3,000 psi (207 bar) |
Operating Temperature range | -30° to +250° F (-54° to +120° C) |
Internal Leakage Pressure Port To Tank Port | 20 cc/min. max at 2,500 psi (172 bar) |
Threads | NPTF 1/4" |
Stroke | 1/4" (6.4) |
Gauge Port Orifice | 020" (.51 mm) and .062" (1.57 mm) |
Panel Mounting Hole Size | 31/32" (24.6) |
Materials | Body, Plugs, Retainers: Steel |
DELTROL閥GI21S介紹

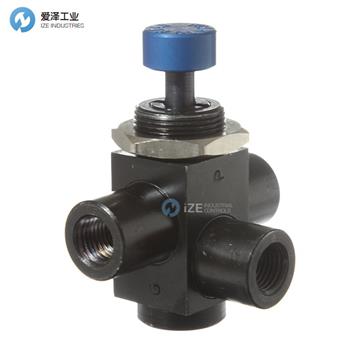

The Pneu-Trol gauge isolator valve is designed to prevent surge damage to a gauge in all types of hydraulic circuits. The gauge isolator valve also acts as a snubber to prevent damage to other hydraulic components - hydraulic chatter, pulsation and fluid hammer can cause costly down time of equipment.
Simple to operate - just push to read. Depressing the knob allows fluid to flow around the spool to the gauge. When the spring-loaded knob is released the spool is automatically returned to the closed position, allowing the fluid to drain from the gauge out the tank port.
FEATURES AND BENEFITS
For hydraulic applications only
Push to operate - spring return
Legible instructions knob - "Push To read"
Panel or bracket mountable
Pneu-Trol 壓力表隔離閥旨在防止所有類型液壓回路中的壓力表受到浪涌損壞。 壓力隔離閥還充當緩沖器以防止損壞其他液壓元件 - 液壓顫動、脈動和流體錘擊會導致設備停機，造成代價高昂的停機時間。
操作簡單 - 只需按下即可閱讀。 按下旋鈕允許流體圍繞閥芯流動到壓力表。 當彈簧加載的旋鈕被釋放時，閥芯自動返回到關閉位置，允許流體從壓力表排出油箱端口。
特點和優點
僅用于液壓應用
按動操作 - 彈簧復位
清晰的指示旋鈕 - “一鍵閱讀”
面板或支架安裝
DELTROL閥其他常用型號：
DELTROL GI21S
DELTROL GI21S-C5
DELTROL GS20B
DELTROL GS20S
