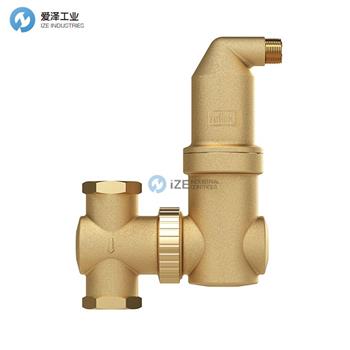

REFLEX排氣閥9257250技術規格
Type: | AT 1 1/2 |
Housing material: | brass |
Installation variant: | horizontal, vertical |
Connection: | IG 1 1/2" |
Connection variant: | thread |
Max. volume flow: | 5,0 m3/h |
Flow rate characteristic value kvs: | 22,6 m3/h |
Diameter: | 63 mm |
Height: | 264 mm |
Width: | 174 mm |
Installation length: | 100 mm |
Weight: | 2,48 kg |
REFLEX排氣閥9257250產品介紹
空氣/微氣泡分離器具有 360°可旋轉連接，用于加熱和冷凍水系統或密封、充滿液體的系統回路中的垂直和水平管道。適用于混合比例高達 50/50% 的水和水/乙二醇混合物。
適合通過優化的分離元件從液體流中收集氣泡，或通過集成的非關閉 Reflex Exvoid T 大型通風機自動排放。
Air/microbubble separator with 360° rotatable connection for vertical and horizontal pipes in heating and chilled water systems or sealed, liquid-filled system circuits. Suitable for the media water and water/glycol mixtures up to a mixing ratio of 50/50%.
Fitting for collecting gas bubbles from the liquid flow via optimised separating element or automatic, permanent discharge into the atmosphere via integrated non-shut-off Reflex Exvoid T large ventilator.
REFLEX排氣閥其他常用型號：
REFLEX 9257200
REFLEX 9257210
REFLEX 9257220
REFLEX 9257230
REFLEX 9257240
REFLEX 9257250
REFLEX 9257300
REFLEX 9257310
REFLEX 9257320
REFLEX 9257330
REFLEX 9257340
REFLEX 9257350
REFLEX valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REFLEX排氣閥9257250的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REFLEX products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
