DURA VALVE球閥20305E技術參數
Valve Size | 1 |
Part No. | DM3VL 20305E |
Weight Lbs. | 3.06 |
Cv | 13.7 |
Torque In-# | 130 |
ISO5211 | F04/F05 |

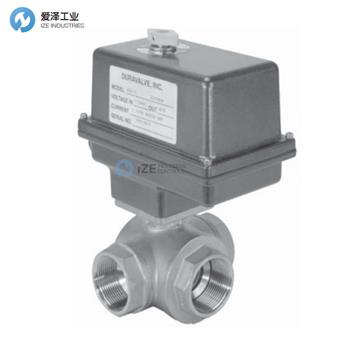

DURA VALVE球閥DM3VT & DM3VL系列介紹
DuraValve 的三閥桿密封設計可延長閥門的循環壽命。主密封是閥桿肩部上的止推墊圈。二級（備用）密封由一個O形圈和一組Vee填料環提供，由碟形墊圈提供動力。這種設計調整填料壓縮以補償磨損、壓力或溫度波動。
閥門特點
? 3 路標準端口設計
? 提供“T”和“L”配置
? 1/4" 到 2" 尺寸
? 螺紋端
? 主體：CF8M、316SS
? 316 不銹鋼球和閥桿
? RTFE 席位
? 壓力等級：1/4" – 1" 1000 PSI
1-1/4" 和 2" 800 PSI
? 溫度范圍：-20° F – 450° F
DuraValve’s triple stem seal design provides for an extended valve cycle life. The primary seal is a thrust washer on the stem shoulder. The secondary (back-up) seal is provided by an O-ring and a set of Vee packing rings, energized by belleville washers. This design adjusts packing compression to compensate for wear, pressure or temperature fluctuations.
VALVE FEATURES
? 3-Way, Standard Port Design
? Available in “T” and “L” Configurations
? 1/4" to 2" Sizes
? Threaded Ends
? Body: CF8M, 316SS
? 316 Stainless Steel Ball and Stem
? RTFE Seats
? Pressure Rating: 1/4" – 1" 1000 PSI
1-1/4" and 2" 800 PSI
? Temperature Range: -20° F – 450° F

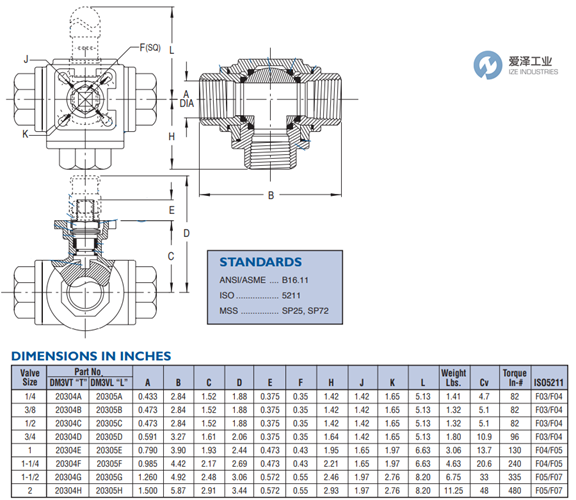

DURA VALVE球閥DM3VT & DM3VL系列選型及尺寸圖
DURA VALVE球閥DM3VT & DM3VL系列其他常用型號：
DURA VALVE 20304A
DURA VALVE 20305A
DURA VALVE 20304B
DURA VALVE 20305B
DURA VALVE 20304C
DURA VALVE 20305C
DURA VALVE 20304D
DURA VALVE 20305D
DURA VALVE 20304E
DURA VALVE 20305E
DURA VALVE 20304F
DURA VALVE 20305F
DURA VALVE 20304G
DURA VALVE 20305G
DURA VALVE 20304H
DURA VALVE 20305H
