M&C過濾器CLF-5產品參數
Technical Data | |
Liquid particle filter | CLF-5 |
Part No. | 03F3000 |
Option: water stop | None |
Gas flow | Max. 300 Nl/h |
Gas pressure | 0.2 to 2 bar abs.△P max. 1.0 bar |
Differential pressure with | 3 6 10 mbar |
Sample temperature | Max. +80 °C [176 °F] |
Ambient temperature | 0 to +60 °C [32 to 140 °F] |
Storage temperature | -25 to +80 °C [-13 to 176 °F] |
Filter element/retention rate | 2-layers CLF-5/99.9999 % for particles > 0.1 μm |
Filter dead volume | 70 cm3 |
Volume capacity for liquid | 20 ml |
Material of sample contacting parts | PVDF, glass, FKM |
Sample gas-/drain connection | G 1/4" i DIN ISO 228/1/GL 25 cap |
Type of mounting | Wall-mounting |
Weight | Approx. 0.3 kg [≈ 0.7 lb] |
M&C過濾器CLF-5產品介紹及選型

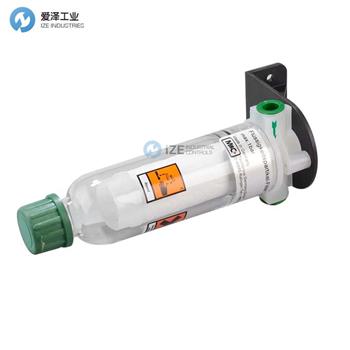

Liquid Particle Filter CLF-5
Part No.: 03F3000
Product features
Liquid particle filter for the separation of aerosols
High retention rate of 99.9999 % for particles > 0.1 μm
With filter head made of PVDF
Two-layer filter element made of glass-fiber
Flow rate: max. 300 Nl/h
Easy change of filter element
With wall-mounting bracket
2 gas connections: female threaded G 1/4"
Condensate outlet: GL 25 with cap
Material of sample-contacting parts: glass-fiber, PVDF, Viton?, glass
Description
Liquid particle filter type CLF?5 for the separation of microscopically small liquid gas droplets, glass?fiber filter element with a retention rate of 99.9999 % for particles > 0.1 μm, flow rate: max. 300 Nl/h, pressure: max. 2 bar abs., sample gas temperature: max. 80 °C, connections: sample gas IN/OUT: G 1/4" f, condensate OUT: GL 25, material: PVDF, glass, Viton?
液體顆粒過濾器 CLF-5
零件編號：03F3000
產品特點
用于分離氣溶膠的液體顆粒過濾器
對于 > 0.1 μm 的顆粒，保留率高達 99.9999 %
帶過濾頭由 PVDF 制成
玻璃纖維制成的兩層濾芯
流量：最大。 300 升/小時
濾芯更換方便
帶壁掛支架
2 個氣體連接：內螺紋 G 1/4"
冷凝水出口：GL 25 帶蓋
樣品接觸部件材料：玻璃纖維、PVDF、Viton?、玻璃
描述
CLF-5 型液體顆粒過濾器，用于分離微小的液態氣體液滴，玻璃纖維過濾器濾芯，對于 > 0.1 μm 的顆粒具有 99.9999 % 的截留率，流速：最大 300 Nl/h，壓力：最大 2 bar abs.，樣氣溫度：最高 80 °C，連接：樣氣輸入/輸出：G 1/4" f，冷凝物輸出：GL 25，材料：PVDF、玻璃、Viton?
M&C過濾器其他常見型號：
M&C CLF-5
M&C CLF-5/W
M&C The filter cartridge NEW + ORIGINAL+ ONE YEAR WARRANTY
