WALTHER噴霧閥SMS-02系列技術參數
TECHNICAL DATA | |
Process pressure | max. 35 [bar] |
Control air pressure | min. 5 to 6 [bar] |
Atomizer air pressure | 0,5 to 6 [bar] |
Process connection (medium) | G1/4“ incl. hose screw joint 6/4 |
Process connection (air) | hose screw joint 6/4 |
Dimensions l x w x h | 132 x 81 x 22 [mm] (incl. magnetic valve) |
Weight | 0,525 [kg] |
Nozzle & needle | optionally hardened (kolsterised) |

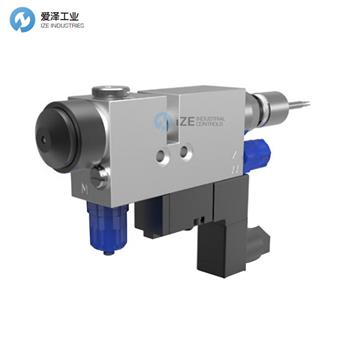

WALTHER噴霧閥SMS-02系列介紹
SMS-02系列系列噴霧閥為各種噴霧應用提供了堅實的基礎。噴霧閥適用于不同介質（例如油、分離劑、油漆、油脂等）的間歇和連續應用。閥門帶有一個法蘭式電動氣動5/2通閥，該閥可主動平行地打開和鎖定閥針，并激活霧化器空氣。閥體中集成了一個節流閥，用于在清潔噴嘴時設置霧化器空氣的后空氣時間。
The Spray Valves of series 02 provide a solid basis for various spray applications. The Spray Valves are suitable for an intermitting as well as a continuing application of different media (e.g. oils, separating agents, paint, greases etc.). The Valves come with a flanged, electro-pneumatic 5/2-way valve which actively and parallelly opens and locks the valve needle, and activates the atomizer air. A throttle valve was integrated in the valve body and is used for setting the post-air time of the atomizer air when cleaning the nozzle.
WALTHER噴霧閥SMS-02系列其他常用型號：
WALTHER SMS-02-F-R-S-T00-00-R15-KL S05
WALTHER SMS-02-F-R-S-T00-00-R15-KL S08
WALTHER SMS-02-F-R-S-T50-00-R15-KLS05.
WALTHER SMS-02-F-R-S-T50-00-R15-KLS08
WALTHER SMS-02-F-N-S-T00-00-R15-KL S05
WALTHER SMS-02-F-N-S-T00-00-R15-KL S08
WALTHER SMS-02-F-N-S-T50-00-R15-KL S05
WALTHER SMS-02-F-N-S-T50-00-R15-KL S08
WALTHER SPRAY VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WALTHER噴霧閥SMS-02-V-R-N-T00-00-N00-DVL的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for WALTHER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
WALTHER噴霧閥SMS-02系列SMS-02-V-R-N-T00-00-N00-DVL技術參數及選型
