BUSAK+SHAMBAN U-Cup封RU0000300-WUAQ3技術參數
訂貨示例 | |
U形圈型號： | RU0 |
活塞桿直徑: | dN =30.0 mm |
溝槽直徑: | D1=40.0 mm |
溝槽寬度 | L=11 mm |
零件號: | RU0000300 |

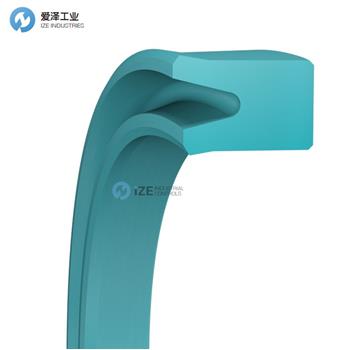

BUSAK+SHAMBAN U-Cup封RU0系列介紹
Today U-Cups are used primarily as seals for piston rods in hydraulic cylinders. U-Cups in polyurethane are proven elements, due to their good mechanical properties, for standard cylinder construction, particularly for mobile hydraulics under rough operating conditions. The U-Cup is a single lip seal.
The U-Cup type RU0 is installed as a single-acting single-lip compact seal. The seal is installed with a simple snap fitting and seals statically on the outside diameter via a fixed seat. It has an asymmetric seal lip profile with shortened inner lip. This form can absorb deflections in the piston rod more easily than, e.g. U-Cup Form RU2 with its more rigid lip geometry. In pressure-free state, it exhibits lower frictional forces than double-lipped U-Cups.
Technical Data
Operating pressure: Max. 40 MPa
Speed: Up to 0.5 m/s
Temperature: Use in mineral oils:-30°C to + 80°C
Media: Mineral oil-based hydraulic fluids.
U形圈主要用做液壓缸中的活塞桿密封件，聚氨酯橡膠的U-形圈是經過考驗的元件，由于其良好的機械特性,用在標準缸結構中，特別用于惡劣工作條件下的工程機械液壓缸。RU0 系列U形圈是一種單唇密封件。
RU0系列U形圈是一種作為單作用、單唇、緊湊型密封件來使用的。這種密封件可用一種簡單的方法來安裝，并通過密封件外徑上的過盈配合使其定位，形成靜態密封。它有一個非對稱的密封唇， 且內唇較短。這種結構形式的U形圈比RU2系列更容易吸收活塞桿的震動和彎曲變形。在沒有壓力時，它的摩擦力比雙唇U形圈的要小得多。
技術數據
工作壓力：最大 40 MPa
速度：高達 0.5 m/s
溫度：在礦物油中使用-30°C 至 +80°C
介質：礦物油基液壓流體。

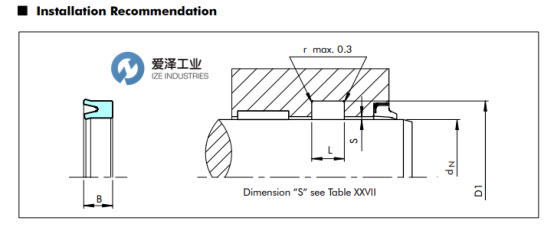

BUSAK+SHAMBAN U-Cup封RU0系列尺寸圖
BUSAK+SHAMBAN U-Cup封RU0系列其他常用型號：
BUSAK+SHAMBAN(B+S) RU0000300-WUAQ3
BUSAK+SHAMBAN(B+S) RU0000060
BUSAK+SHAMBAN(B+S) RU0100060
BUSAK+SHAMBAN(B+S) RU0000080
BUSAK+SHAMBAN(B+S) RU0100080
BUSAK+SHAMBAN(B+S) RU0200080
BUSAK+SHAMBAN(B+S) RU0100100
BUSAK+SHAMBAN(B+S) RU0200100
BUSAK+SHAMBAN(B+S) RU0000100
BUSAK+SHAMBAN(B+S) RU0100120
BUSAK+SHAMBAN(B+S) RU0200120
BUSAK+SHAMBAN(B+S) RU0300120
BUSAK+SHAMBAN(B+S) RU0000120
BUSAK+SHAMBAN(B+S) RU0000140
BUSAK+SHAMBAN(B+S) RU0100140
BUSAK+SHAMBAN(B+S) RU0200140
BUSAK+SHAMBAN(B+S) RU0000150
BUSAK+SHAMBAN(B+S) RU0100150
BUSAK+SHAMBAN(B+S) RU0100160
BUSAK+SHAMBAN(B+S) RU0000160
BUSAK+SHAMBAN(B+S) RU0200160
BUSAK+SHAMBAN(B+S) RU0300160
BUSAK+SHAMBAN ring NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BUSAK+SHAMBAN U-Cup封RU0000300-WUAQ3的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BUSAK+SHAMBAN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
BUSAK+SHAMBAN U-Cup封RU0000300-WUAQ3技術規格
