AIR SENTRY過濾器D-101技術參數
MODEL | D-101 |
HEIGHT(cm) | 12.7 |
Diameter (cm) | 12.7 |
MOUNTING CONNECTION | 1" slip fit |
Silica Gel (kg) | 0.6 |
Adsorption Max (ml) | 254 |
AirFlow Max (cfm) | 20 |
Reservoir FluidFlow Max (gpm) | 150 |
Type of Medium | Silica Gel |
AIR SENTRY過濾器D系列介紹
Typical Applications
? Storage Tanks
? Fluid Reservoirs
? Transformers
? Pumps
? Gearboxes

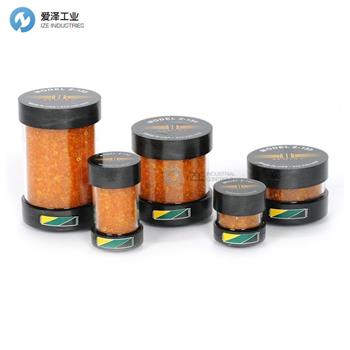

The D-Series breathers feature numerous models in a variety of sizes, designed to satisfy the requirements of most stationary fluid management applications. The breathers provide application flexibility by using silica gel for moisture adsorption or activated carbon for fume and odor control, or both when necessary. All D-Series models feature 2-micron solid particle filtration and are available with airflow ratings of 20 cfm.
The D-Series is constructed of industrial grade raw materials, tested to ensure a wide range of chemical compatibilities, and features high impact resistant ABS top and bottom caps. The clear acrylic tube makes it easy to inspect the condition of the color-changing silica gel from a distance. The silica gel turns from gold to dark green to visually indicate the adsorption of moisture and confirm the breather is getting the job done!
典型應用
? 儲罐
? 流體儲存器
? 變形金剛
? 泵
? 變速箱
D系列過濾器具有多種尺寸的多種型號，旨在滿足大多數固定流體管理應用的要求。過濾器通過使用硅膠吸附水分或活性炭控制煙霧和氣味，或在必要時使用兩者來提供應用靈活性。 所有D系列型號均具有2微米固體顆粒過濾功能，可提供20 cfm的氣流額定值。
D系列由工業級原材料制成，經過測試以確保廣泛的化學兼容性，并具有高抗沖擊ABS頂蓋和底蓋。透明的亞克力管便于遠距離檢查變色硅膠的狀況。硅膠從金色變成深綠色，直觀地表明水分的吸附，并確認呼吸器正在完成工作。
AIR SENTRY過濾器D系列其他常用型號：
AIR SENTRY D-100
AIR SENTRY D-101
AIR SENTRY D-101
AIR SENTRY D-103
AIR SENTRY D-104
AIR SENTRY D-108
AIR SENTRY filter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、于一體，代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AIR SENTRY過濾器D-101的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AIR SENTRYproducts, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
AIR SENTRY過濾器D-101規格及型號描述
