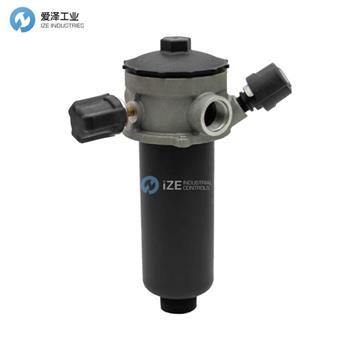

SCHROEDER過濾器ZT8ZZ10BBY2技術規格
Specifications | |
Short Description | Tank Mounted Filter |
Flow | 40 gpm 150 L/min |
Type | Tank Mounted Filter |
Seal Material | Buna |
Weight | 1.68 kg3.7 lb |
Material | Synthetic |
Mounting Type | Tank Mounted (Suction) |
Inlet/Outlet Port Type | ISO 228 G |
Port Size | 1 in. |
Operating Temperature [Min] | -29 oC -20 oF |
Operating Temperature [Max] | 107 oC 225 oF |
Head Material | Aluminum |
Cracking Pressure | 1.7 bar 25 psi |
Filter Rating | 10 μm 10 mesh |
Operating Pressure [Max] | 7 bar 100 psi |
Bowl Material | Nylon |
Fatigue Pressure | 6 bar 90 psi |
Application | Hydraulic Filtration |
Width | 6 in 152 mm |
Height | 12.96 in 329 mm |
SCHROEDER過濾器ZT系列特點介紹
低壓罐裝過濾器
可提供雙入口端口
提供管道、SAE 直螺紋和 ISO 228 端口
各種污垢警報選項
可選 PAB1 呼吸器
可提供受質量保護的 GeoSeal 元件 (GZT)
Low pressure tank-mounted filter
Available with dual inlet porting
Offered in pipe, SAE straight thread and ISO 228 porting
Various Dirt Alarm options
Optional PAB1 breather
Available with quality-protected GeoSeal Elements (GZT)
SCHROEDER過濾器ZT系列其他常用型號:
SCHROEDER ZT8ZZ10BB
SCHROEDER ZT8ZZ10BBY2
SCHROEDER ZT8ZZ10BBY2C
SCHROEDER ZT8ZZ10BES
SCHROEDER ZT8ZZ10BY2
SCHROEDER ZT8ZZ10HSSY5
SCHROEDER ZT8ZZ10PPES1
SCHROEDER ZT8ZZ10PPY2
SCHROEDER ZT8ZZ10PY2
SCHROEDER ZT8ZZ10S
SCHROEDER ZT8ZZ10SES1
SCHROEDER ZT8ZZ10SESB
SCHROEDER ZT8ZZ10SSES
SCHROEDER ZT8ZZ10SSES1
SCHROEDER ZT8ZZ10SSM
SCHROEDER ZT8ZZ10SSY2
SCHROEDER ZT8ZZ10SSY2ABM
SCHROEDER ZT8ZZ10SSY2C
SCHROEDER filter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SCHROEDER過濾器ZT8ZZ10BBY2的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for SCHROEDER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
SCHROEDER過濾器ZT系列ZT8ZZ10BBY2技術參數
