BRINKMANN潛水泵TS系列技術參數
APPLICATIONS | |
Types of fluid | coolants |
Kinematic viscosity | ...200 SSU (...45 mm2/s) |
Pumping temperature | 30...175 °F (0...80 °C) |
CONSTRUCTION | |
Pump body | cast iron |
Cover | cast iron |
Impellers | brass |
Shaft | steel |
Optional: | |
Pump body | bronze (TS12...TS13, TS21...TS22) |
Cover | bronze (TS12...TS13, TS21...TS22) |
Impellers | CrNi-steel (TS12...TS22) |
Noise level | 61 dBA (TS12...TS13) |
BRINKMANN潛水泵TS系列介紹
TS12 至 TS24型浸沒泵適用于通過刀架或驅動主軸供應冷卻液的CNC 機床。TS系列還適用于配備內部冷卻刀具的機器。TS泵配備外圍葉輪，可實現緊湊的高壓裝置。TS系列僅適用于過濾冷卻液。為了降低泵壓，TS22 至 TS24 型還提供可選的 Y/YY（Dahlander）電機配置，以半速進行 4 極運行。

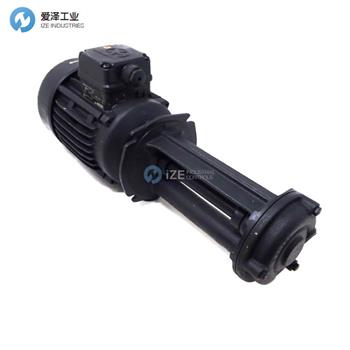

Immersion Pumps models TS12 to TS24 are suitable for CNC machine tools featuring coolant supply through the tool holder or driving spindle.
The TS series is also used for machines equipped with internally cooled tools.
TS pumps are equipped with a peripheral impeller to achieve a compact high pressure unit.
Series TS are suitable for filtered coolant only.
To reduce pump pressure, model TS22 to TS24 is also available with an optional Y/YY (Dahlander) motor configuration for 4 pole operation at half speed.
BRINKMANN潛水泵TS系列其他常用型號：
BRINKMANN TS13/110-6165+019
BRINKMANN TS22/190-6165+019
BRINKMANN TS22/250-65+003
BRINKMANN TS21S250+001
BRINKMANN TS13/150-12Z-304
BRINKMANN TS22/350-6165+019
BRINKMANN TS22S190+001
BRINKMANN TS22/250-61+024
BRINKMANN TS22/350-65Y+012
BRINKMANN IMMERSION PUMPS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BRINKMANN潛水泵TS22/350-65Y+012的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BRINKMANN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
BRINKMANN潛水泵TS系列TS22/350-65Y+012技術參數介紹
