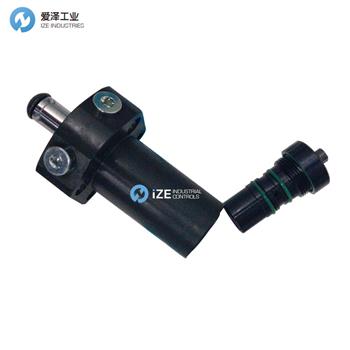

德國AMF油缸6930D-08設計：
Cylinder housing from hardened steel, burnished. Piston trmpered, groud ,and treated with a corrosion-resistant coating. Oil supply via oil channel in body.
德國AMF油缸6930D-08應用：
These threaded cylinders can be used in all types of clamping fixtures, ldeal for pressure bars for tolerance compensation in multiple-workpiece clamping fixtures, and for positioning holding or ejecting, and clamping workpieces, can be used extending or retracting.
德國AMF油缸6930D-08特性：
The O-ring are smallar than the dinmeter of the screw-in thread, This reduces the risk of damage to the seal during the installation process.
Two-piece body makes it easier to change the piston-rod seal. Housing seaal against the surface of the hoid sleeve. For sizes 50 and 08, there is additional sealing between the housing head and the fixture body.

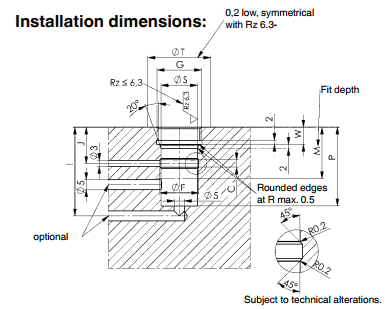

Small dimensions, can be instanlled closely spaced side-by-side. The cylinder must be screwed into the fixture body up to its flange.
德國AMF油缸6930D-08：
Maximum speed of operation 0.5 m/s
Can be supplied on request for higher pressures and temperatures
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件型號：
AMF油缸6930D-05
AMF油缸6930D-08
AMF油缸6930D-12
AMF油缸6930D-20
AMF油缸6930D-32
AMF油缸6930D-50
AMF油缸6930-05
AMF油缸6930-08
AMF油缸6930-12
AMF油缸6930-20
AMF油缸6930-32
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。
如果有任何關于德國AMF油缸6930D-08的疑問，請隨時與我們聯系，（021-3100 6702），我們將盡全力解決您的問題。
有關德國AMF油缸6930D-08更詳細的信息或者購買德國AMF 相關產品，請聯系愛澤工業。
