ROSS閥Y1523C9012技術參數

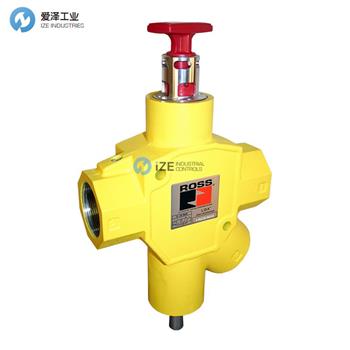

DESCRIPTION: | Lockout Valve 15 Series / High-Capacity Manual 3/2 Way, 2" In-Out 2" Exhaust NPT |
Valve Function | 3/2 |
Actuation | Manual |
Thread Type | NPT |
Voltage | No Voltage |
Port Size (In-Out) | 2" |
Port Size (Exhaust) | 2" |
Cv (In-Out) | 40.4 |
Cv (Exhaust) | 52.2 |
Body Material | Aluminum |
Inlet Pressure Range | 0 to 300 psig (0 to 20.7 bar) |
Ambient Temperature Range | 40 to 175 F (4 to 80 C) |
Media Temperature Range | 40 to 175 F (4 to 80 C) |
Flow Media | Filtered Air |
WEIGHT: | 8.3 lbs (3.76 kg) |
ROSS閥15系列介紹
氟碳滑動密封件，即使在長時間不活動后也能輕松移動
通過帶有紅色手柄的黃色機身輕松識別
用于壓力驗證的集成傳感端口
僅可鎖定在 OFF 位置
有一個全尺寸排氣口（等于或大于供應）
大紅色手柄的簡單推/拉提供積極直接的手動操作
Fluorocarbon slipper seals for easy shifting, even after long periods of inactivity
Easily identified by yellow body with red handle
Integrated sensing port for pressure verification
Lockable only in the OFF position
Has a full size exhaust port (equal to or larger than supply)
Simple push/pull of the large red handle provides positive direct manual operation
ROSS閥15系列其他常用型號：
ROSS Y1523B5102
ROSS Y1523B5112
ROSS Y1523B6102
ROSS Y1523B7112
ROSS Y1523C3002
ROSS Y1523C4002
ROSS Y1523C5002
ROSS Y1523C5012
ROSS Y1523C6002
ROSS Y1523C6907
ROSS Y1523C7012
ROSS Y1523C8002
ROSS Y1523C9012
ROSS Y1523D2002
ROSS Y1523D3012
