MACNAUGHT注脂系統K7-67技術參數
Technical Specifications |
High volume delivery pressure up to 34,450kPa (5,000psi) |
High pressure delivery pressure up to 68,900kPa (10,000psi) |
Provides up to 30 shots of grease with each prime |
KY SUPERGRIP? 3 jaw high pressure coupler |
Up to 0.45g per shot (High pressure setting) |
Up to 1.25g per shot (High volume setting) |
Maximum viscosity - Up to NLGI 2 |
Includes a KT6 reusable 5kg grease container for contamination free greasing or bulk fill via a J3 Transfer Pump |
Wetted parts - Aluminium, steel, nitrile rubber |
1.5m Flexible delivery hose |
MACNAUGHT注脂系統K7-67產品介紹
K7-67MINILUBE?（5千克型）是便攜式高壓手動注脂系統，可在緊湊且便攜式的包裝中提供大批量/高壓注脂。K7-67帶有一個5kg可重復使用的KT6容器，由兩個主要部件組成：一個腳踏式彈簧泵，該容器將油脂從容器分配到軟管和噴槍，以及獲得專利的高壓/大容量KR pressurite?噴槍。當將噴槍設置在高容量位置時，噴槍將輸送高達5,000 psi的壓力；當將噴槍設置在高壓設置中時，噴槍將輸送較少量的潤滑脂，但在較高的壓力下（高達10,000 psi）。K7-67是較昂貴的氣動潤滑系統的經濟替代品。

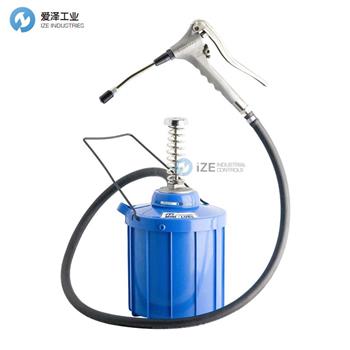

The K7-67 MINILUBE? (5kg model) is a portable High Pressure Manual Greasing System that provides high-volume/high-pressure greasing in a compact and portable package. The K7-67 comes with a KT6 5kg reusable container and consists of two main components, a foot operated spring-loaded pump, that dispenses grease from the container to the hose and gun and a patented high pressure/high volume KR pressurite? gun. When the gun is set on the high volume position the gun will deliver up to 5,000 psi and when set on the high pressure setting the gun will deliver a lower volume of grease, but at higher pressures ( up to 10,000 psi). The K7-67 is an economical alternative to the more expensive air-operated greasing systems.
MACNAUGHT注脂系統K系列其他常用型號：
MACNAUGHT K7-01
MACNAUGHT K7-24
MACNAUGHT K7-67
MACNAUGHT K32-01
MACNAUGHT K4-01
MACNAUGHT K40-01
MACNAUGHT K45-01
MACNAUGHT K45-01-11
MACNAUGHT Grease injection system NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MACNAUGHT注脂系統K7-67的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MACNAUGHT products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
