DUPONT KALREZ密封7075產品參數
Typical Physical Properties1 | |
Hardness, Shore A ± 5 (range 70–80 Shore A) | 75 |
100% Modulus2 , MPa (psi) | 7.6 (1100) |
Tensile at break, MPa (psi) | 17.9 (2600) |
Elongation at Break, % | 160 |
Compression Set, % | |
70 hr at 204°C (400°F)3 | 15 |
70 hr at 204°C (400°F)4 | 12 |
Maximum Service Temperature, °C (°F) | 327 (620) |
Lower Service Temperature, °C (°F) | –20 (–4) |
1 Not to be used for specifications 2 ASTM D412, 500 mm/min 3 ASTM D395B, O-rings 4 ASTM D345B, pellets | |
DUPONT KALREZ密封7075產品介紹

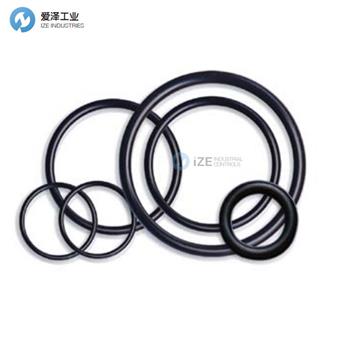

Kalrez? 7075 545.5*5.33 parts are a carbon black filled product that has enhanced physical performance properties including very low compression set and improved seal force retention. This product is designed for improved sealing performance in both high temperature environments and temperature cycling situations. Kalrez? 7075 545.5*5.33 provides even greater sealing performance in dynamic applications where low friction is required and it was specifically developed to be used in the chemical and hydrocarbon processing industries, with an improved thermal resistance that extends maximum service temperature to 327°C (620°F). Kalrez? 7075 545.5*5.33 offers the enhanced elastomeric properties outlined above while providing chemical resistance better than the industry standard, set by Kalrez? 4079.
Kalrez?7075 545.5*5.33零件是一種炭黑填充產品，具有增強的物理性能，包括極低的壓縮形變和改善的密封力保持力。 該產品旨在提高高溫環境和溫度循環情況下的密封性能。 Kalrez?7075 545.5*5.33在要求低摩擦的動態應用中提供了更高的密封性能，它是專門為化學和碳?xì)浠衔锛庸ば袠I(yè)開發的，具有改進的耐熱性，可將最高使用溫度擴展至327°C（620°F） ）。 Kalrez?7075 545.5*5.33提供了上述增強的彈性體性能，同時提供了比Kalrez?4079設定的行業標準更好的耐化學性。
DUPONT KALREZ密封其他常見型號：
DuPont Kalrez 7075 545.5*5.33
DuPont Kalrez 4079
DuPont Kalrez 6375
DUPONT KALREZ ring NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DUPONT KALREZ密封7075 545.5*5.33的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DUPONT KALREZ products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: .
DUPONT KALREZ密封7075 545.5*5.33產品介紹
