AIR-LOGIC過濾器F9705B80技術參數
Specifications | |
Brands | Air Logic |
Filter Size | 5 μm |
Color | Light Blue |
Maximum Pressure | 125 psi8.6 bar |
Typical Tube Retention Pressure1 | 125 psi8.6 bar |
Filtration | 5 μm |
Tubing Inside Diameter (ID) | 1/16 in |
Connection Type | Barbed |
Wetted Material(s) | Polysulfone (PSU)Stainless Steel (SS) |
Installation Method | Push-In |
Connection Size | 10-32 Threads |
EU RoHS 2 (Directive 2011/65/EU with amendment (EU) 2015/863) | Yes |
REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) Compliant | Yes |
Additional Information | This filter is well suited to filtering media entering or leaving a critical device. Integrate the threaded filter into a system to create a filtered input or output. Ex. Regulator, Valve, cylinder, or pump. |
AIR-LOGIC過濾器F9705B80產品介紹

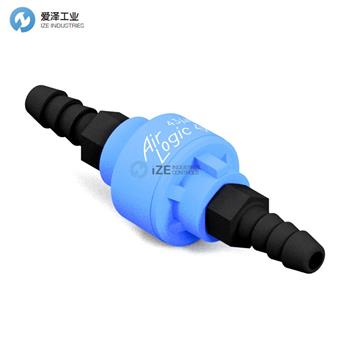

Product Number F9705B80, 5um (Micron, μm) Threaded Inline Filter, 1/16 Inch Pre-Installed Barbs
Threaded inline filters protect sensitive devices from system contamination in a pneumatic or liquid circuit. Filters are a flat stainless steel weave meant for small devices or for larger systems working in tandem with system-wide filtration. There is no flow orientation to the inline filters, the filtered area and canister volume are equal on both sides of the filter. Threaded inline filters offer the largest filtered area in Air Logic's offerings.
Threaded inline filters are commonly used to protect against debris generated inside of a system or device. Ex. Teflon tape debris during assembly, broken o-rings from valves, machining chips from threads.
Threaded connections are a convenient way to connect in a variety of applications. This product combines well with Air Logic's fitting product line for application specific requirements like swivel capability, and replaceable filter applications.
產品編號 F9705B80，5um（微米，μm）螺紋在線過濾器，1/16 英寸預裝倒鉤
螺紋在線過濾器可保護敏感設備免受氣動或液體回路中的系統污染。 過濾器是一種扁平的不銹鋼編織物，適用于小型設備或與全系統過濾協同工作的大型系統。 在線過濾器沒有流向，過濾器兩側的過濾面積相等。 螺紋在線過濾器提供 Air Logic 產品中最大的過濾面積。
螺紋在線過濾器通常用于防止系統或設備內部產生碎屑。 前任。 裝配過程中的聚四氟乙烯膠帶碎屑、閥門的 O 型圈破損、螺紋加工切屑。
螺紋連接是在各種應用中進行連接的便捷方式。 該產品與 Air Logic 的配件產品線完美結合，可滿足特定應用要求，例如旋轉能力和可更換過濾器應用。
AIR-LOGIC過濾器其他常用型號：
AIR-LOGIC F97025B80
AIR-LOGIC F97025B85
AIR-LOGIC F97025B86
AIR-LOGIC F97043B80
AIR-LOGIC F97043B85
AIR-LOGIC F97043B86
AIR-LOGIC F97043P80
AIR-LOGIC F97043P85
AIR-LOGIC F9705B80
AIR-LOGIC F9705B85
AIR-LOGIC F9705B86
