VICKERS液壓閥DGMFN系列產品參數
Basic Characteristics | |
Maximum flow | 120 l/min (32 USgpm) |
Maximum operating pressure | 315 bar (4500 psi) |
Operating temperature | 20° to 50°C (70° to 120°F) |
Weights | 3,1 kg (7 lbs) |
VICKERS液壓閥DGMFN系列產品介紹

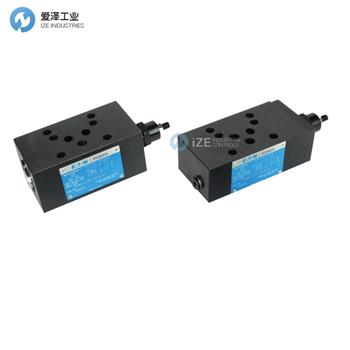

General Description
These valves are adjustable, non-compensated flow restrictors. An integral check valve around the regulating orifice allows free flow in one direction and metered flow in the other.
Control is available in “A” only, “B” only, and “A” and “B”ports as an “X” type (meter–in) or “Y” type (meter-out).
The “P” port is available only in the “X” type (meter-in) and does not contain a reverse flow check.
The valve flow setting is adjustable by means of either a hex key adjusting screw and locknut, a hand-adjust knob, or a micrometer knob with keylock.
一般說明
這些閥是可調節的,無補償?shù)牧髁肯拗破鳌?調節孔周圍的一體式止回閥允許一個方向的自由流動,而另一個方向的計量流動。
控制僅在“ A”,“ B”中可用,并且“ A”和“ B”端口以“ X”類型(進水口)或“ Y”類型(進水口)使用。
“ P”端口僅在“ X”類型(進油口)中可用,并且不包含反向流量檢查。
可以通過六角調節螺釘和防松螺母,手動調節旋鈕或帶鍵鎖的千分尺旋鈕來調節閥的流量設置。
VICKERS液壓閥DGMFN系列其他常見系列:
VICKERS DGMC
VICKERS DGMDC
VICKERS DGMFN
VICKERS DGMFN1
VICKERS DGMX2
VICKERS DGMC2
VICKERS DGMDC
VICKERS DGMFN
VICKERS DGMFN
VICKERS DGMFN-5-Y-A2W-B2W-30
VICKERS DGMFN-5-A1-FW-B1-FW-30
VICKERS valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于VICKERS液壓閥DGMFN-5-Y-A2W-B2W-30的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for VICKERS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
VICKERS液壓閥DGMFN-5-Y-A2W-B2W-30產品參數
