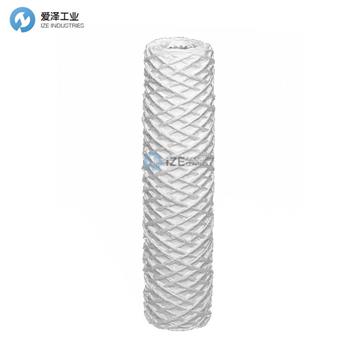

3M濾芯DCCSB-3X技術參數

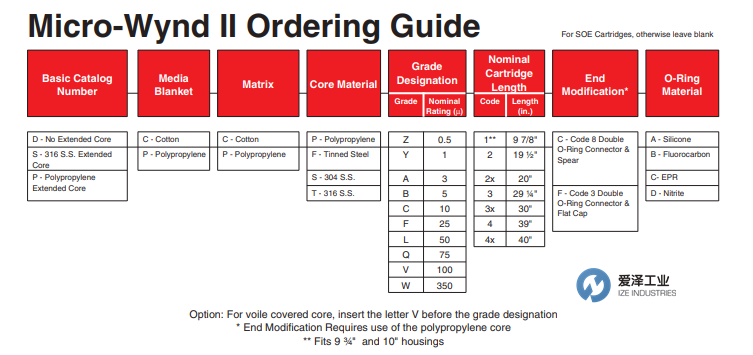

DCCSB-3X | |
Basic Catalog Number | D - No Extended Core |
Media Blanket | C - Cotton |
Matrix | C - Cotton |
Core Material | S - 304 S.S. |
Grade Designation | Grade - B |
Nominal Cartridge Length | Code - 3x |
3M濾芯DCCSB-3X產品簡介及選型
Micro-Wynd?II濾筒是毯式過濾技術的重大進步。通過將增強的開風工藝與內部介質覆蓋層相結合，Mi cro-Wynd II可提供優異的流速，更高的過濾效率以及不同批次之間的一致過濾特性。
優異的性能是紗線基體先進的卷繞圖案與CUNO專有的專利工藝直接結合的結果，CUNO的專有專利工藝在連續的紗線層之間分別應用了定制的介質“毛毯”。單獨插入的橡皮布將腔室封閉，并保持過濾的一致性和完整性。這兩個因素結合在一起，實現了過濾效果的平衡，而這些特性在普通的纏繞式濾筒上是無法獲得的，在普通的濾筒上對紗線進行梳理或刷毛處理會產生過濾介質。
Micro-Wynd II纏繞模式所提供的限制也比普通繞線盒常見的模式少。因此，對于Micro-Wynd II濾芯而言，提供多達2?倍的開口面積并不罕見，在相同的壓降下，流量最多可提高500％。
The Micro-Wynd? II filter cartridge is a major advance in blanketed filter technology. By combining an enhanced open wind process with an internal media blanket, the Mi cro-Wynd II provides superior flow rates, greater filtration efficiency, and consistent filtration characteristics from cartridge to cartridge, lot to lot.
The superior performance is a direct result of the advanced winding pattern of the yarn matrix combined with CUNO’s exclusive patented process of separately applying a tailored media “blanket” between successive layers of yarn.This winding pattern creates much larger diamond shaped contaminant holding chambers. The separately inserted blanket encloses the chambers and maintains the consistency and integrity of filtration. These two factors combine to achieve a balance of filtration characteristics impossible to obtain with ordinary wound filter cartridges with teased or brushed up random fibers on the yarn to produce a filtering media.
The Micro-Wynd II winding pattern also provides less restriction than the patterns common to ordinary wound cartridges. Consequently, it is not unusual for Micro-Wynd II filter cartridge to provide up to 2 ? times more open area, enhancing the flow rate by up to 500% for the same pressure drop.
3M濾芯其他常見系列：
3M DCCSB-3X
3M D-PPFZ
3M D-PPSZ
3M D-PPTZ
3M D-PPPZ
3M D-PPFY
3M D-PPSY
3M D-PPTY
3M D-PPPY
3M D-PPFA
3M D-PPSA
3M D-PPTA
3M D-PPPA
3M D-PPFB
3M D-PPSB
3M D-PPTB
3M D-PPPB
3M D-PPFC
3M D-PPSC
3M D-PPTC
3M D-PPPC
3M D-PPFF
3M D-PPSF
3M D-PPTF
3M D-PPPF
3M Filter element NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于3M濾芯DCCSB-3X的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for 3M products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
3M濾芯DCCSB-3X產品參數
