BUSAK+SHAMBAN密封PW4300630-WUAQ3產品參數

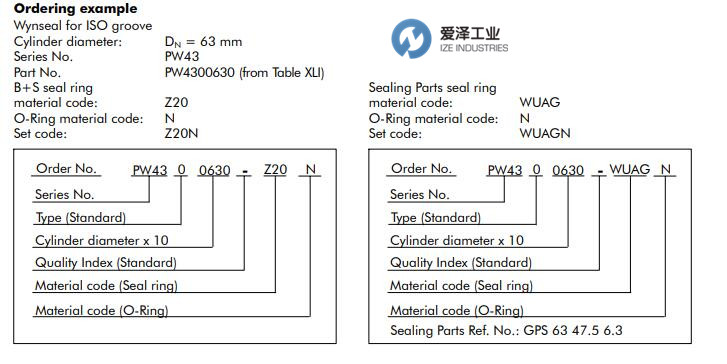

Wynseal for ISO groove |
| |
Cylinder diameter: | DN = 63 mm | |
Series No. | PW43 | |
Part No. | PW4300630 (from Table XLI) | |
Sealing Parts seal ring | ||
material code: | WUAQ | |
O-Ring material code: | 3 |
BUSAK+SHAMBAN密封PW4300630-WUAQ3產品介紹
Description

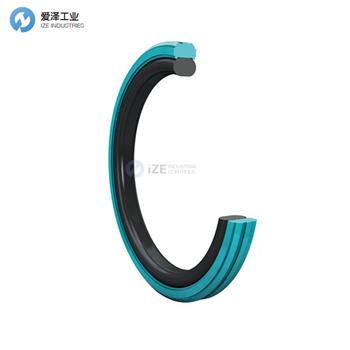

The ZurconR Wynseal is a double-acting seal consisting of a special polyurethane seal ring and an O-Ring as energizing element .
The particular characteristic of the seal is the special design of the seal edge profile. Two external seal edges act as primary seal for pressures from both sides and prevent any build-up of hydrodynamic pressure over the seal profile and the risk of the blow-by effect. The central back-up and sealing bulge increases the sealing effect*. Grooves are provided on both sides on the plane surfaces to provide activation of the energizing O-Ring. These ensure direct pressure loading of the seal under all operating conditions.

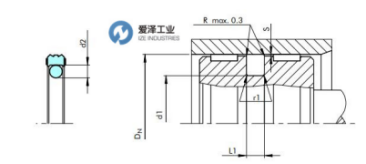

Since the installation groove is identical to that for the TurconR Glyd RingR, the seal is ideal for the standardisation of cylinder construction if, efficient and low cost seal elements are demanded in large quantities and, the cylinder can be adapted to meet different operating conditions. It has to be taken into consideration that in this case the gap dimension has to be checked !
Application Examples
The ZurconR Wynseal is the recommended sealing element for double acting pistons of hydraulic components in various sectors such as:
Machine tools
Forklifts & handling machinery
Agriculture
Industrial hydraulic light to medium duty
描述
ZurconR Wynseal是一種雙作用密封件，由一個特殊的聚氨酯密封圈和一個O形圈作為激勵元件組成。
密封件的特殊特征是密封件邊緣輪廓的特殊設計。兩個外部密封邊緣充當來自兩側的壓力的主要密封，并防止在密封輪廓上積聚任何流體動力壓力，并防止漏氣的危險。中央的支撐和密封凸起可提高密封效果*。在平面的兩側均設有凹槽，以激活通電的O形圈。這些確保了在所有運行條件下密封件的直接壓力加載。
由于安裝槽與TurconR Glyd RingR的安裝槽相同，因此，如果需要大量有效且低成本的密封元件，并且氣缸可以適應不同的工作條件，則該密封件是氣缸結構標準化的理想選擇。必須考慮到在這種情況下必須檢查間隙尺寸！
應用實例
ZurconR Wynseal是推薦用于各種領域的液壓元件雙作用活塞的密封元件，例如：
機械工具
叉車及裝卸機械
農業
工業液壓輕至中型
選型參考
BUSAK+SHAMBAN密封PW43系列其他常見型號：
B+S PW420B223
B+S PW4300520
B+S PW4200540
B+S PW4200550
B+S PW4300550
B+S PW4200560
B+S PW4200570
B+S PW4300600
B+S PW4200600
B+S PW4200630
B+S PW4300630
B+S PW420B227
B+S PW4200650
B+S PW4300650
B+S PW4200700
B+S PW4300700
B+S PW4200720
BUSAK+SHAMBAN ZurconR U-Cup PW43 NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BUSAK+SHAMBAN密封PW4300630-WUAQ3的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BUSAK+SHAMBAN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
