DUPLOMATIC閥DSE3J系列技術參數
Max operating pressure: |
|
Nominal flow with ?p 10 bar P-T | 4 - 12 - 30 l/min |
Hysteresis | < 0,2% % of Q max |
Repeatability | < 0,2% % of Q max |
Threshold | < 0,1% |
Valve reproducibility | ≤ 5% |
Ambient temperature range | -20 / +60 °C |
Fluid temperature range | -20 / +80 °C |
Fluid viscosity range | 10 ÷ 400 cSt |
Fluid contamination degree | according to ISO 4406:1999 |
Recommended viscosity | 25 cSt |
Mass: |
|

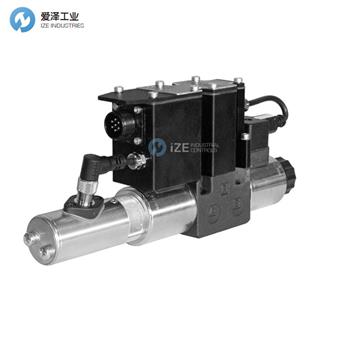

DUPLOMATIC閥DSE3J系列介紹
DSE3J是一種直動式方向閥，具有集成的電動比例控制、反饋和安裝接口，符合 ISO 4401 (CETOP RP 121H) 標準。
閥門開度和流量可以與參考信號成比例地連續調制。傳感器和數字卡可以精確控制光標的位置，減少滯后和響應時間并優化閥門的性能。
它具有故障安全功能。
The DSE3J is a direct operated directional valve with integrated electric proportional control, feedback and mounting interface in compliance with ISO 4401 (CETOP RP 121H) standards.
The valve opening and hence flow rate can be modulated continuously in proportion to the reference signal. Transducer and digital card allow a fine control of the positioning of the cursor, reducing hysteresis and response time and optimizing the performance of the valve.
It is available with fail safe function.

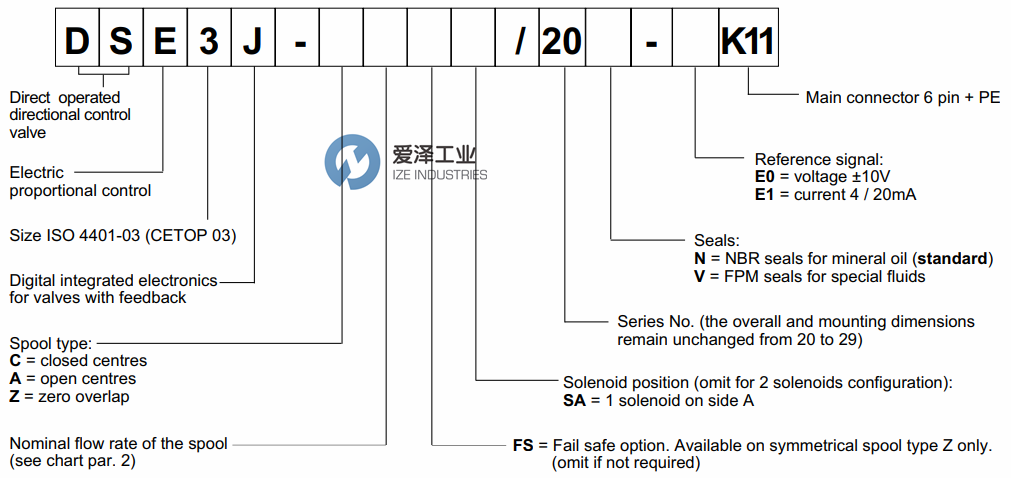

DUPLOMATIC閥DSE3J系列選型
DUPLOMATIC閥DSE3J系列其他常用型號：
DUPLOMATIC DSE3J-C04FSSA/31N-E0K11A
DUPLOMATIC DSE3J-Z01/20N-E1K11
DUPLOMATIC DSE3J-Z12/20N-E0K11
