AIR FRESH SERVICE過濾裝置FMN-V 12 BLUE技術參數
Type: | FMN-V12-Blue |
Nominal air volume: | 500 – 1800 m3/h |
Naturally aspirated: | 2400 m3/h |
Weight: | Approx. 80 kg |
Dimensions: | |
Length: | 470 mm |
Width: | 790 mm |
Height: | 650 mm |
Motor data/supply: | 3~380 – 480V 50Hz 1.15 kW |
AIR FRESH SERVICE過濾裝置FMN-V 12 BLUE產品介紹
-Filterstufe 4 - filterstep 4
-nicht regenerierbar / nicht auschwaschbar-
-not scourable lubrication / not reclaimable-
Schwebstoff-Filter V-Form
-filter for suspended matterAbm.: 457 x 457 x 292 + 6
Filterklasse H 13
-過濾步驟4-過濾步驟4
-不可再生/不可水洗-
-不可潤滑/不可回收-
HEPA過濾器V形
-懸浮物過濾器尺寸：457 x 457 x 292 + 6
過濾器等級H 13

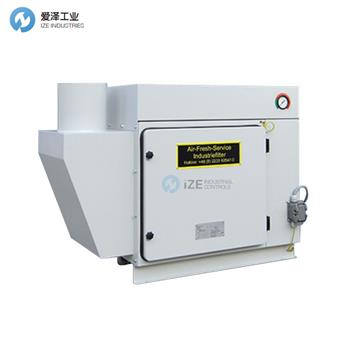

The FMN-V 12 Blue series was developed for the separation of air pollutants on machine tools.
Our filter systems are supplied ready for connection, with an integrated fan.
The housing is made of sturdy, torsion-free sheet steel, painted in RAL 7035 or per customer wishes. Installation of the unit is enabled by the two feet on the housing.
The maintenance door provides very easy access to the filter elements. The undertray of the filter system serves as an oil drip pan; on the outside, there is a 3/4" connection to the oil return line. The soiling indicator fitted to the unit shows at what point the plug-in filter modules have become soiled to an extent that it is no longer reasonably possible to guarantee the function of the filter unit.
As soon as the needle is in the red area, the front plug-in modules should be cleaned and filter stage 5 (main filter stage) replaced. For information on this, refer to our Maintenance schedule (9.1).
Smoke, aerosols and suspended particulate matter are separated mechanically by the filter stages. The unit is equipped with a V-formed particulate filter.
FMN-V 12 Blue系列是為分離機床上的空氣污染物而開發的。
提供的過濾器系統已準備就緒，可通過集成風扇進行連接。
外殼由堅固，無扭轉的薄鋼板制成，涂有RAL 7035或根據客戶要求涂漆。通過外殼上的兩個支腳可以安裝該單元。
維護門非常容易接近濾芯。過濾器系統的底盤用作油盤。在外部，與回油管線的連接為3/4“。安裝在裝置上的污染指示器顯示插入式過濾器模塊在什么時候被污染到無法合理保證的程度。過濾器單元的功能。
針頭進入紅色區域后，應立即清潔前部插入式模塊并更換過濾器級5（主過濾器級）。有關此信息，請參閱我們的維護時間表（9.1）。
煙霧，氣溶膠和懸浮顆粒物通過過濾器級進行機械分離。該裝置配備了V型顆粒過濾器。
AIR FRESH SERVICE過濾裝置FMN-V系列其他常用型號：
AIR FRESH SERVICE FMN-V 5 Blue
AIR FRESH SERVICE FMN-V 12 Blue
AIR FRESH SERVICE FMN-V 60 Blue
AIR FRESH SERVICE FMN-V 30 Blue
AIR FRESH SERVICE filter device NEW + ORIGINAL+ ONE YEAR WARRANTY
