WATER HYDRAULICS電磁閥簡介
Part No | Description |
206BBSW | DN6, 4/3, Closed P, 0-160 bar, 24VDC, Spring Return including Hirschmann Connector (Actuation card required) |
212BBSW | DN6, 4/3 Open Centre, 0-160 bar, 24VDC, Spring Return including Hirschmann Connector (Actuation card required) |
2C06BBSW | DN6, 4/3 Closed P ,0-160 bar, CETOP-3, 4/3 Closed P, DN6, 24V DC , Spring Return (Actuation card required) |
2C12BBSW | DN12 4/3, Closed P, 0-160 bar, CETOP-3, 24V DC , Spring Return (Actuation card required) |
2M06BBSW | DN6 4/3, Closed P, 0-160 bar, 24VDC, Spring Return, Manifold Mount including Hirschmann Connector (Actuation card required) |
2M12BBSW | DN6, 4/3 Open Centre, 0-160 bar, 24VDC, Spring Return, Manifold Mount including Hirschmann Connector (Actuation card required) |

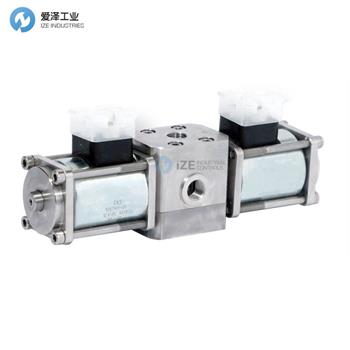

WATER HYDRAULICS電磁閥介紹
The valve offers high efficiency with minimal energy input for actuation. Also available in 4/2 & 3/2 control functions; please see data sheet for further information. Various porting configurations including stand alone (BSPP), TWHC manifold or Cetop 3 are available.
PWM Circuit, for solenoid actuation above 20 bar, actuation card (part number: 004-010) must be used. This minimises the electrical power consumption whilst at the same time maximising the actuation force of the solenoid.
該閥以最小的能量輸入提供了很高的效率。還提供4/2和3/2控制功能；請參閱數據表以獲取更多信息。提供各種端口配置，包括獨立（BSPP），TWHC歧管或Cetop 3。
PWM電路，對于20 bar以上的螺線管驅動，必須使用驅動卡（零件號：004-010）。這使電功率消耗最小化，同時使螺線管的致動力最大化。

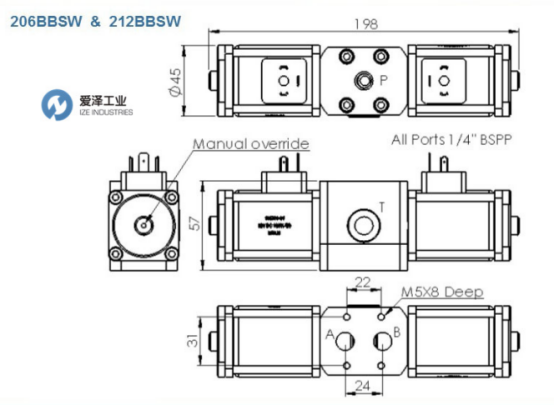

WATER HYDRAULICS電磁閥212BBSW尺寸圖
WATER HYDRAULICS電磁閥其他常用型號：
WATER HYDRAULICS 206BBSW
WATER HYDRAULICS 212BBSW
WATER HYDRAULICS 2C06BBSW
WATER HYDRAULICS 2C12BBSW
WATER HYDRAULICS 2M06BBSW
WATER HYDRAULICS 2M12BBSW
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WATER HYDRAULICS電磁閥212BBSW的疑問，請隨時與我們聯系（021-31006702）。我們將盡全力解決您的問題。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
WATER HYDRAULICS電磁閥212BBSW技術資料
