MP FILTRI濾芯STR070產品參數

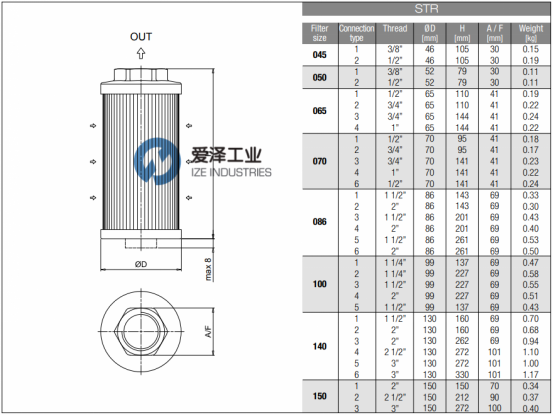

Dimensions | ||||||
filter size | connection type | thread | φD | H | A/F | weight |
070 | 1 | 1/2'' | 70 | 95 | 41 | 0.18 |
070 | 2 | 3/4'' | 70 | 95 | 41 | 0.17 |
070 | 3 | 3/4'' | 70 | 141 | 41 | 0.23 |
070 | 4 | 1'' | 70 | 141 | 41 | 0.22 |
070 | 6 | 1/2'' | 70 | 141 | 41 | 0.24 |

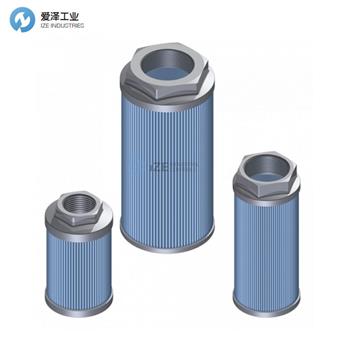

MP FILTRI濾芯STR系列產品介紹
STR是一系列用于保護下游泵免受粗污染的吸入過濾器。它們被放置在與泵的吸入管路直接相連的油位之下。
可用功能:
-最大流量為875 1/min的內螺紋連接
-旁通閥,用于緩解過多的過濾介質壓降
常用用途:
-移動機械(建筑和農業機械)
-工業設備
STR is a range of suction strainers for protection of the downstream pump against the coarse contamination.
They are placed below the oil level directly connected to the suction line of the pump.
Available features:
- Female threaded connections up to 3", for a maximum flow rate of 875 1/min
- Bypass valve, to relieve excessive pressure drop across the filter media
Common application:
- Mobile machines (Construction and Agriculture machines)
- Industrial equipment

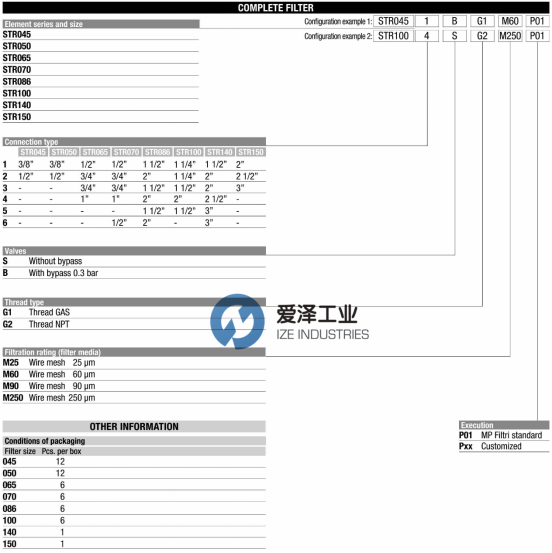

選型參考
MP FILTRI濾芯STR系列其他常見型號:
MP FILTRI STR0451SG1M25P01
MP FILTRI STR0502BG2M25P01
MP FILTRI STR0653SG1M60P01
MP FILTRI STR0704BG2M90P01
MP FILTRI STR0865SG1M250P01
MP FILTRI STR1006BG2M25P01
MP FILTRI STR1406SG1M25P01
MP FILTRI STR1506BG2M60P01
MP FILTRI STR0702BG1M60P01
MP FILTRI filter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MP FILTRI濾芯STR0702BG1M60P01的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for MP FILTRI products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
MP FILTRI濾芯STR系列STR0702BG1M60P01產品參數
