TOGNELLA閥FT290-14產品參數
MATERIALS | |
Body | 9 S Mn Pb 23 - UNI 5105 - Press forg. |
Needle | 35 S Mn Pb 23 - UNI 5105 - Burnished |
OR | Nitrile |
Antiextrusion ring | PTFE |
Handwheel | Nylon 66 |
TOGNELLA閥FT290-14產品介紹
FT290隔離器針閥（直列式）通常用于保護壓力表，因?yàn)樗鼈兙哂须p重功能：在打開時抑制壓力波動，并完全隔離壓力表。
采用高電阻鋼壓制而成，經過精確的處理，經過嚴格的測試，確保了可靠性和長壽命。
旋轉的旋轉螺母允許壓力計精確定位。
標準提供并插入螺母中的密封件可防止接頭和壓力計之間的任何拉伸。
對于帶錐形螺紋的壓力表，必須使用本目錄第182頁所示的銅墊圈FT 1201（需另行要求）。適用于高達400巴的壓力和-20°至+100°的溫度，可根據要求使用對數螺母（G）進行面板安裝。

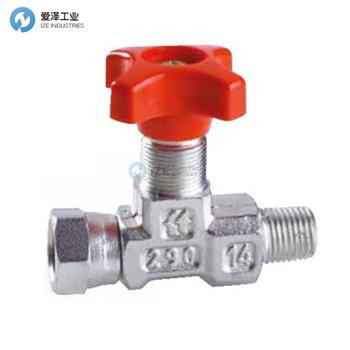

The FT290 isolator needle valves (in line) are normally used to protect the pressure gauge since they have the double function of dampening pressure surge during opening and of isolating the pressure gauge entirely.
Pressed in high-resistance steel, protected by an accurate treatment,subjected to strict tests, they ensure reliability and long life.
A rotating swivel nut allows for accurate pressure gauge orientation.
The sealing, standard supplied, and inserted in the nut, prevents any drawing between the connection and the gauge.
For pressure gauge with taper threads, it will be necessary to use coppe washers FT 1201 shown on page 182 of this catalogue (to be requested separately). Suitable for pressure up to 400 bar and temperature from -20° to +100° they can be panel mounted by use of log nut (G),supplied on request.

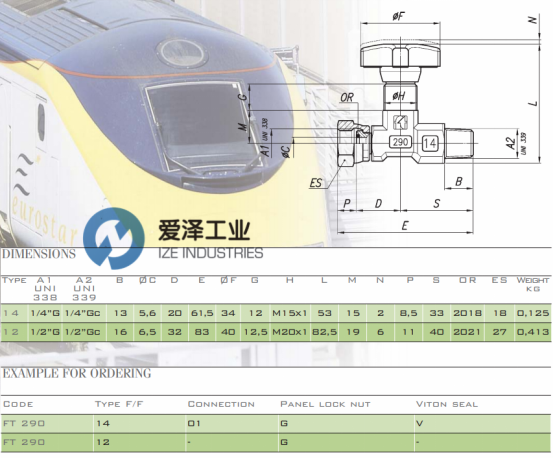

尺寸及選型
TOGNELLA閥FT290-14其他常見型號：
TOGNELLA FT250-12
TOGNELLA FT290-14
