TOGNELLA閥FT257/5 100技術參數

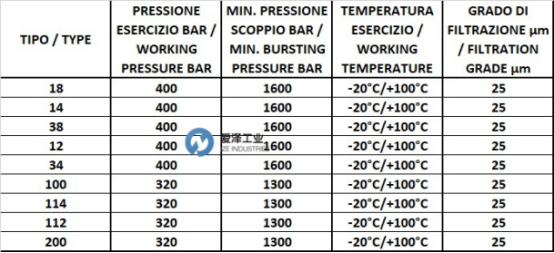

TYPE | 100 |
WORKINGPRESSURE BAR | 320 |
MIN. BURSTING PRESSURE BAR | 1300 |
WORKING TEMPERATURE | -20°C/+100°C |
FILTRATION GRADE μm | 25 |
TOGNELLA閥介紹

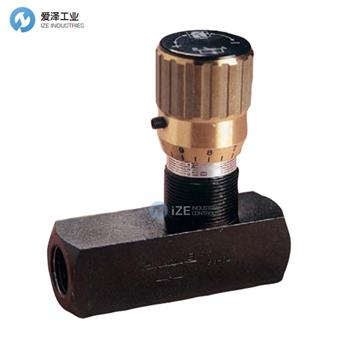

Single-acting flow control valves available from size 1/8" to 2" BSPP size, max. working pressure 400 Bar / 320 Bar, adjustable oil flow rate from 0,5 to 200 Lt/min. (depending on the size)
Technical description
The valves FT 257/5 have the function of regulating and, if necessary, to shut-off the flow in one direction, allowing a free flow in the opposite direction. Appreciated for their aesthetic characteristics that indulge positively the contructive directions of the equipments on which they are installed , they are also a reliable solution. The proper dimensioning has made possible to obtain, in a little space, a great mechanic resistance of the components. The spring in high-resistance material is housed in such a way that it does not close as a pack during the opening of the taper single-acting shutter valve.
Like all the valves of the series FT 257 they ensure:
? efficient metallic sealing;
? flow linearity at the opening;
? accurate control for a wide range of flow rate, thanks to the double reference system
? wide range of the flow rate control;
? impossibility for the needle to leave its seat even in the max. opening position;
? stable positioning thanks to a screw inside the knob;
? quick panel mounting (the ring nuts (G) are supplied on request). The check valve is set to 0,5 bar.
提供 1/8" 至 2" BSPP 尺寸的單作用流量控制閥，最大工作壓力 400 巴 / 320 巴，可調節的油流量從 0.5 到 200 升/分鐘。 （視尺寸而定）
技術說明
閥 FT 257/5 具有調節功能，如有必要，可關閉一個方向的流動，允許相反方向的自由流動。由于它們的美學特征積極地滿足安裝它們的設備的構造方向而受到贊賞，它們也是一種可靠的解決方案。適當?shù)某叽缭O(shè)計使得在很小的空間內獲得部件的巨大機械阻力成為可能。高阻材料彈簧的安裝方式使其在錐形單作用截止閥打開期間不會成組關閉。
與 FT 257 系列的所有閥門一樣，它們確保：
? 高效的金屬密封；
? 開口處的流動線性；
? 由于雙參考系統，可精確控制各種流速
? 流量控制范圍廣；
? 即使在最大位置，針也不可能離開其座位。開倉位置；
? 旋鈕內有螺絲，定位穩定；
? 快速面板安裝（環形螺母 (G) 可應要求提供）。止回閥設置為 0.5 bar。
TOGNELLA閥FT 257/5系列其他常用型號：
TOGNELLA FT257/5 100 1”
TOGNELLA FT257/5 18
TOGNELLA FT257/5 14
TOGNELLA FT257/5 38
TOGNELLA FT257/5 12
TOGNELLA FT257/5 34
TOGNELLA FT257/5 100
TOGNELLA FT257/5 114
TOGNELLA FT257/5 112
TOGNELLA FT257/5 200
